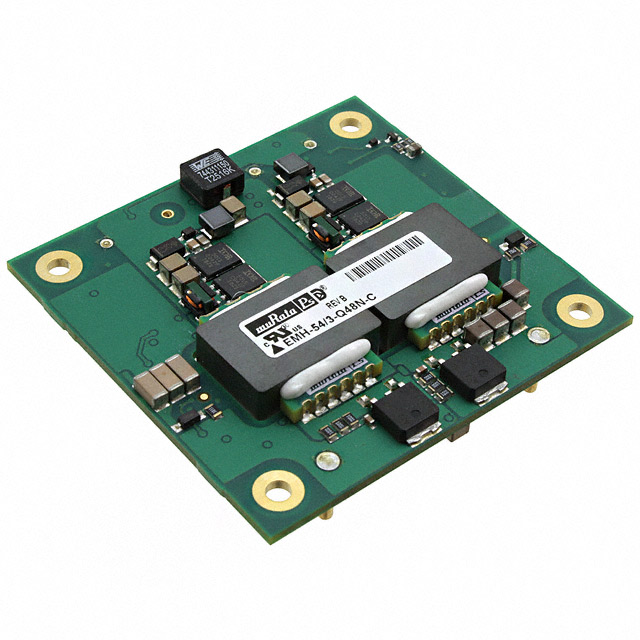

EMH-54/3-Q48N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 54V 162W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 54V 162W

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Power (Watts)	Voltage - Isolation	Type	Voltage - Input (Min) [Min]	Number of Outputs	Package / Case	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency	Mounting Type	Current - Output (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [y]
Murata Power Solutions Inc. EMH-54/3-Q48N-C	ITE (Commercial)	162 W	2250 VDC	Isolated Module	18 V	1	9-DIP Module	Active Low Enable	72 V	85 °C	-40 °C	54 V	61 mm	0.43 "	2.4 in	10.9 mm	58.4 mm	2.3 "	91.5 %	Through Hole	3 A	OCP OTP OVP Remote On/Off UVLO
Murata Power Solutions Inc. EMH-54/3-Q48NB-C	ITE (Commercial)	162 W	2250 VDC	Isolated Module	18 V	1	9-DIP Module 5 Leads	Active Low Enable	72 V	85 °C	-40 °C	54 V	61 mm	0.5 in	2.4 in			2.3 "	91.5 %	Through Hole	3 A	OCP OTP OVP Remote On/Off SCP UVLO	12.7 mm	58.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 54V 3A 18V - 72V Input
