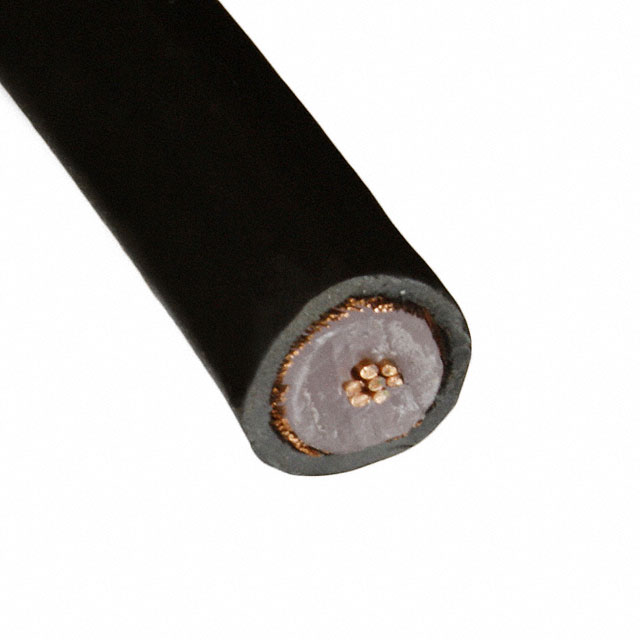

M4206 BK199

Active

ALPHA WIRE

CABLE COAXIAL RG-8A 11AWG 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE COAXIAL RG-8A 11AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	M4206 BK199

Cable Group	RG-8A
Cable Type	Coaxial
Conductor Material	Copper, Bare
Dielectric Diameter [diameter]	7.24 mm
Dielectric Diameter [diameter]	0.285 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	10.24 mm
Jacket (Insulation) Diameter [diameter]	0.403 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	96 %
Shield Material	Copper, Bare
Shield Type	Braid
VoP, Velocity of Propagation	78
Wire Gauge	4.6 mm²
Wire Gauge	11

Part	Impedance	Jacket Color	VoP, Velocity of Propagation	Wire Gauge	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Group	Shield Type	Shield Material	Shield Coverage	Jacket (Insulation) Material	Conductor Material	Length	Length	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE M4206 BK199	50 Ohms	Black	78	4.6 mm²	11	Coaxial	10.24 mm	0.403 in	RG-8A	Braid	Copper Bare	96 %	Poly-Vinyl Chloride (PVC)	Copper Bare	304.8 m	1000 ft	7.24 mm	0.285 in	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.26
Newark	1 Foot	25	$ 3.24

General part information

Coaxial Cable 11 AWG (4.60mm²) RG-8A 1000.0' (304.80m) 50 Ohms
