TLHS90-300-01

Active

Essentra Access Solutions

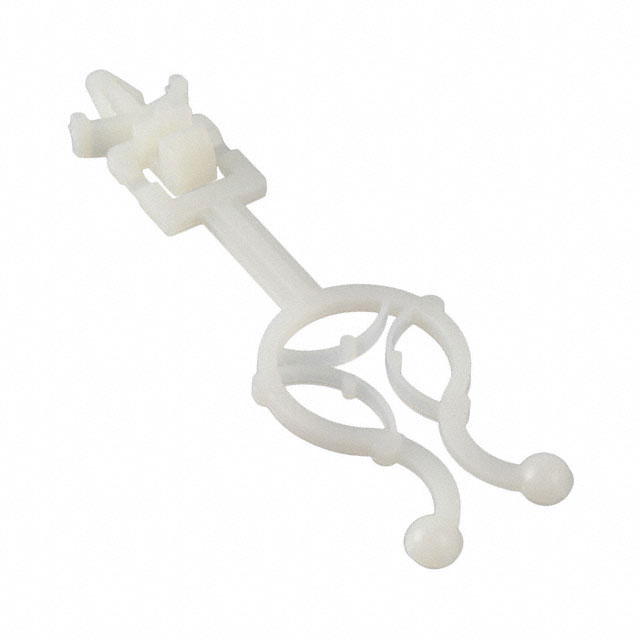

CBL CLIP TWIST LOCK NAT ARROW

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP TWIST LOCK NAT ARROW

Technical Specifications

Parameters and characteristics for this part

Specification	TLHS90-300-01

Color	Natural
Features	Anti-Rotation Pin
Height [z]	2.678 in
Height [z]	68 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [Max]	12.07 mm
Opening Size [Max]	0.475 in
Opening Size [Min]	3.43 mm
Opening Size [Min]	0.135 in
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness	0.078 in
Panel Thickness	1.98 mm
Type	Clip, Twist Lock
Type Attributes	Standoff, Hinged, Webbed

Part	Panel Hole Size	Panel Hole Size	Material	Height [z]	Height [z]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Mounting Type	Color	Type Attributes	Type	Panel Thickness	Panel Thickness	Features	Material Flammability Rating
Essentra Access Solutions TLHS90-300-01	4.75 mm	0.187 in	Polyamide (PA66) Nylon 6/6	2.678 in	68 mm	3.43 mm	12.07 mm	0.135 in	0.475 in	Arrowhead Winged	Natural	Hinged Standoff Webbed	Clip Twist Lock	0.078 in	1.98 mm	Anti-Rotation Pin	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.32

General part information

Cable Clip, Twist Lock Natural Arrowhead, Winged 0.135" ~ 0.475" (3.43mm ~ 12.07mm)
