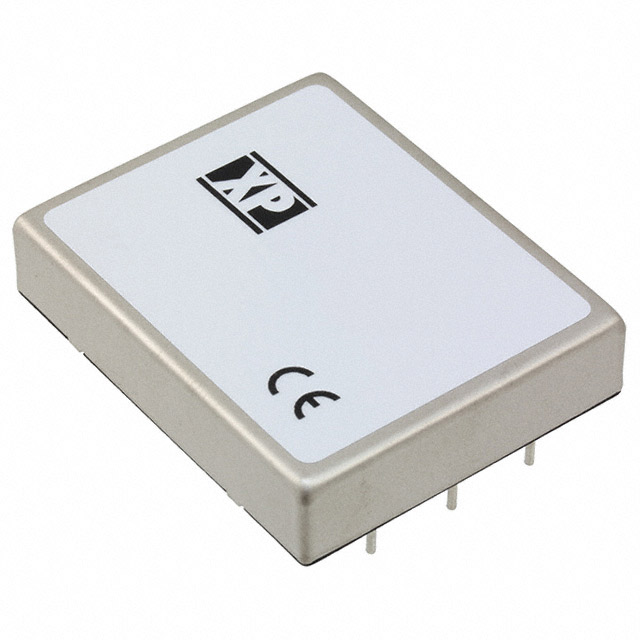

RDC4072S05

Active

XP POWER

DIP,50.8X40.6MM ISOLATED POWER MODULES ROHS

Search across all available documentation for this part.

Active

XP POWER

DIP,50.8X40.6MM ISOLATED POWER MODULES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	RDC4072S05

Applications	Railway, ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	8 A
Efficiency	89 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	40 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	1.6 "
Size / Dimension [y]	40.6 mm
Size / Dimension [z]	0.42 in
Size / Dimension [z]	10.7 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	140 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

Part	Standard Number	Package / Case	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Type	Applications	Features	Number of Outputs	Voltage - Input (Min) [Min]	Control Features	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
XP POWER RDC4072S05	62368-1	6-DIP Module	8 A	Through Hole	140 V	89 %	5 V	1.6 "	40.6 mm	50.8 mm	2 in	0.42 in	10.7 mm	85 °C	-40 °C	40 W	Isolated Module	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off SCP UVLO	1	36 V	Active High Enable	1.5 kV
XP POWER RDC4072D15	62368-1	6-DIP Module		Through Hole	140 V	88 %	15 V	1.6 "	40.6 mm	50.8 mm	2 in	0.42 in	10.7 mm	85 °C	-40 °C	40 W	Isolated Module	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off SCP UVLO	2	36 V	Active High Enable	1.5 kV	1.35 A	1.35 A	-15 V
XP POWER RDC4072S12	62368-1	6-DIP Module	3.35 A	Through Hole	140 V	87 %	12 V	1.6 "	40.6 mm	50.8 mm	2 in	0.42 in	10.7 mm	85 °C	-40 °C	40 W	Isolated Module	ITE (Commercial) Railway	OCP OTP OVP Remote On/Off SCP UVLO	1	36 V	Active High Enable	1.5 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 8A 36V - 140V Input
