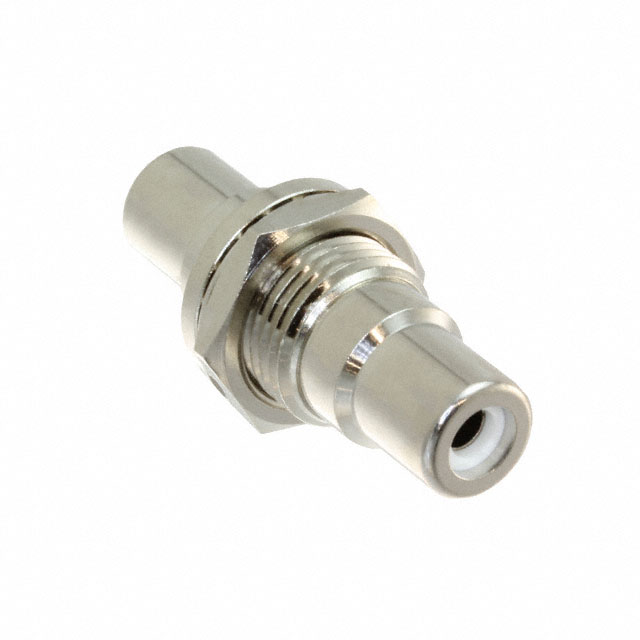

BPJJ03X

Active

Switchcraft Inc.

RCA PHONO CONNECTORS BLKHD PHON JK/JK WH

Search across all available documentation for this part.

Active

Switchcraft Inc.

RCA PHONO CONNECTORS BLKHD PHON JK/JK WH

Technical Specifications

Parameters and characteristics for this part

Specification	BPJJ03X

Actual Diameter [diameter]	0.126 in, 0.327 in
Actual Diameter [diameter]	8.3 mm, 3.2 mm
Body Finish	Nickel
Body Material	Brass
Contact Material - Plating [custom]	Nickel
Conversion Type	Same Series
Convert From (Adapter End)	Phono (RCA) Jack
Convert To (Adapter End)	Phono (RCA) Jack
Features	Mounting Hardware
Gender	Female to Female
Includes	Connector, Washer, Nut
Insulation Color	White
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions/Contacts	2 Conductors
Shielding	Unshielded

RCA Phono Connectors BLKHD PHON JK/JK WH

Part	Number of Positions/Contacts	Body Material	Mounting Feature	Shielding	Contact Material - Plating [custom]	Convert To (Adapter End)	Includes	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Finish	Convert From (Adapter End)	Features	Conversion Type	Insulation Color	Gender
Switchcraft Inc. BPJJ03AUX	2 Conductors	Brass	Bulkhead - Rear Side Nut	Unshielded	Nickel	Phono (RCA) Jack	Connector Nut Washer	0.126 in 0.327 in	3.2 mm 8.3 mm	Gold	Phono (RCA) Jack	Mounting Hardware	Same Series	White	Female to Female
Switchcraft Inc. BPJJ03X	2 Conductors	Brass	Bulkhead - Rear Side Nut	Unshielded	Nickel	Phono (RCA) Jack	Connector Nut Washer	0.126 in 0.327 in	3.2 mm 8.3 mm	Nickel	Phono (RCA) Jack	Mounting Hardware	Same Series	White	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RCA Phono Connectors BLKHD PHON JK/JK WH
