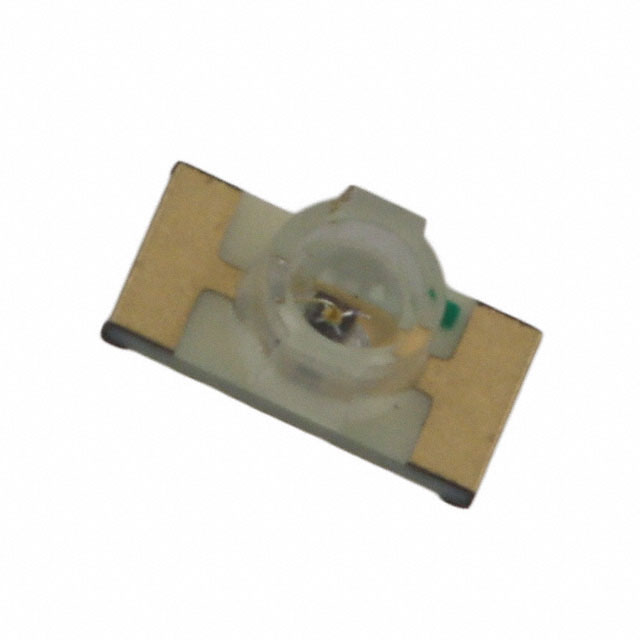

APTL3216SECK

Active

Kingbright

LED ORANGE CLEAR CHIP SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APTL3216SECK

Active

Kingbright

LED ORANGE CLEAR CHIP SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APTL3216SECK

Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [diameter]	1.6 mm
Lens Transparency	Clear
Millicandela Rating	350 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.6 mm
Supplier Device Package	Chip LED
Viewing Angle	70 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Dominant	601 nm
Wavelength - Peak	610 nm

APTL3216 Series

Standard LEDs - SMD 3.2x1.6mm GREEN REVERSE

Part	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Height (Max) [Max] [z]	Lens Transparency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Configuration	Supplier Device Package	Package / Case	Lens Size [diameter]	Current - Test	Viewing Angle	Lens Color	Wavelength - Dominant	Color	Wavelength - Peak	Lens Style	Height (Max) [Max]
Kingbright APTL3216SURCK	1.95 V	230 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	70 °	Colorless	630 nm	Red	645 nm
Kingbright APTL3216SYCK	2 V	350 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	70 °	Colorless	590 nm	Yellow	590 nm
Kingbright APTL3216QBC/D	3.3 V	250 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	70 °	Colorless	465 nm	Blue	460 nm
Kingbright APTL3216CGCK-01	2.1 V	100 mcd		Clear	Surface Mount	1.6 mm	3.2 mm		1206	1206 (3216 Metric)	1.1 mm	20 mA	80 °	Colorless	570 nm	Green		Round with Domed Top	1.2 mm
Kingbright APTL3216PBC/A	3.2 V	200 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	70 °	Colorless	470 nm	Blue	468 nm
Kingbright APTL3216QBC/D-01	3.3 V	250 mcd		Clear	Surface Mount	1.6 mm	3.2 mm		1206	1206 (3216 Metric)	1.1 mm	20 mA	80 °	Colorless	465 nm	Blue	460 nm	Round with Domed Top	1.2 mm
Kingbright APTL3216CGCK	2.1 V	100 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	80 °	Colorless	570 nm	Green
Kingbright APTL3216SYCK01	2 V	350 mcd		Clear	Surface Mount	1.6 mm	3.2 mm	Standard	2-SMD	1206 (3216 Metric)	1.6 mm	20 mA	80 °	Colorless	590 nm	Yellow	590 nm		1.2 mm
Kingbright APTL3216SECK	2.1 V	350 mcd	1.1 mm	Clear	Surface Mount	1.6 mm	3.2 mm	Standard	Chip LED	1206 (3216 Metric)	1.6 mm	20 mA	70 °	Colorless	601 nm		610 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.41
		10	$ 0.24
		100	$ 0.15
		500	$ 0.11
		1000	$ 0.10
	Digi-Reel®	1	$ 0.41
		10	$ 0.24
		100	$ 0.15
		500	$ 0.11
		1000	$ 0.10
	Tape & Reel (TR)	2000	$ 0.10
		4000	$ 0.09
		6000	$ 0.08
		10000	$ 0.08
		14000	$ 0.08
		20000	$ 0.08
		50000	$ 0.07
		100000	$ 0.07

Description

General part information

APTL3216 Series

Standard LEDs - SMD 3.2x1.6mm GREEN REVERSE
