HT 3/4 C OR DG

Active

MM Newman Corporation

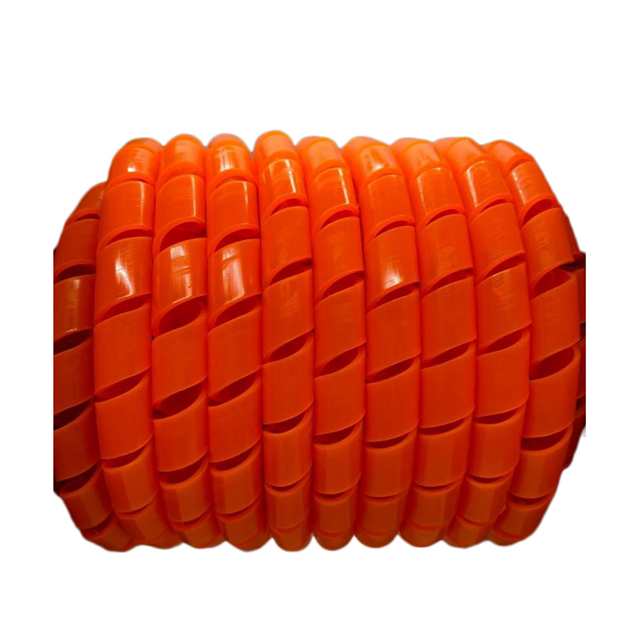

SPIRAL WRAP 0.62" X 100' ORANGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/4 C OR DG

Active

MM Newman Corporation

SPIRAL WRAP 0.62" X 100' ORANGE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HT 3/4 C OR DG

Abrasion Protection	Abrasion Resistant
Diameter - Inside, Expanded [diameter]	5 in
Diameter - Inside, Expanded [diameter]	127 mm
Diameter - Inside, Non-Expanded [diameter]	15.75 mm
Diameter - Inside, Non-Expanded [diameter]	0.62 in
Diameter - Outside, Non-Expanded [diameter]	19.05 mm
Diameter - Outside, Non-Expanded [diameter]	0.75 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	1.65 mm
Wall Thickness	0.065 in

HT 3/4 Series

Part	Color	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Type	Wall Thickness	Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Length	Length	Material	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Heat Protection
MM Newman Corporation HT 3/4 C WH	White	Harness	15.75 mm	0.62 in	Abrasion Resistant	Spiral Wrap	1.65 mm	0.065 in	-60 °C	88 °C	Chemical Resistant Solvent Resistant	5 in	127 mm	100 ft	30.48 m	Polyethylene (PE)	19.05 mm	0.75 in
MM Newman Corporation HT 3/4 UR	Black	Harness	15.75 mm	0.62 in	Abrasion Resistant	Spiral Wrap	1.65 mm	0.065 in	-60 °C	88 °C	Chemical Resistant Solvent Resistant	5 in	127 mm	100 ft	30.48 m	Polyethylene (PE)	19.05 mm	0.75 in
MM Newman Corporation HT 3/4 N	Natural	Harness	17.42 mm	0.686 "	Abrasion Resistant	Spiral Wrap	0.81 mm	0.032 in	-40 °C	121 °C	Chemical Resistant Self Extinguishing Solvent Resistant	5 in	127 mm	100 ft	30.48 m	Nylon	19.05 mm	0.75 in
MM Newman Corporation HT 3/4 R-B	Black	Harness	15.75 mm	0.62 in	Abrasion Resistant	Spiral Wrap	1.65 mm	0.065 in	-20 C	80 C	Chemical Resistant Solvent Resistant	5 in	127 mm	100 ft	30.48 m	Polyethylene (PE)	19.05 mm	0.75 in	UL94 V-2 UL1441	Fire Resistant
MM Newman Corporation HT 3/4 C OR DG		Harness	15.75 mm	0.62 in	Abrasion Resistant	Spiral Wrap	1.65 mm	0.065 in	-60 °C	88 °C	Chemical Resistant Solvent Resistant	5 in	127 mm	100 ft	30.48 m	Polyethylene (PE)	19.05 mm	0.75 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 186.31
		10	$ 151.32

Description

General part information

HT 3/4 Series

Spiral Wrap 0.750" (19.05mm) X 100' (30.48m) Orange
