DS1233D-5+

Active

Analog Devices Inc./Maxim Integrated

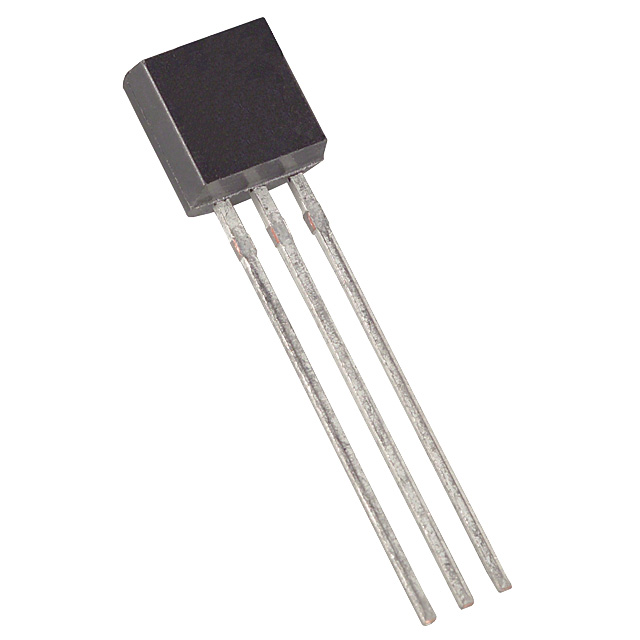

IC SUPERVISOR 1 CHANNEL TO92-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS1233D-5+

Active

Analog Devices Inc./Maxim Integrated

IC SUPERVISOR 1 CHANNEL TO92-3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS1233D-5+

Mounting Type	Through Hole
Number of Voltages Monitored	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	Open Drain or Open Collector
Package / Case	TO-226-3, TO-92-3
Reset	Active Low
Reset Timeout	250 ms
Supplier Device Package	TO-92-3
Type	Simple Reset/Power-On Reset
Voltage - Threshold	4.625 V

DS1233D Series

Part	Reset Timeout	Output	Voltage - Threshold	Mounting Type	Number of Voltages Monitored	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Reset	Supplier Device Package
Analog Devices Inc./Maxim Integrated DS1233DZ-10/T&R	250 ms	Open Drain or Open Collector	4.375 V	Surface Mount	1	85 °C	-40 °C	TO-261-4 TO-261AA	Simple Reset/Power-On Reset	Active Low	SOT-223-3
Analog Devices Inc./Maxim Integrated DS1233DZ-5+T&R	250 ms	Open Drain or Open Collector	4.625 V	Surface Mount	1	85 °C	-40 °C	TO-261-4 TO-261AA	Simple Reset/Power-On Reset	Active Low	SOT-223-3
Analog Devices Inc./Maxim Integrated DS1233D-10/T&R	250 ms	Open Drain or Open Collector	4.375 V	Through Hole	1	85 °C	-40 °C	TO-226-3 TO-92-3	Simple Reset/Power-On Reset	Active Low	TO-92-3
Analog Devices Inc./Maxim Integrated DS1233D-10+	250 ms	Open Drain or Open Collector	4.375 V	Through Hole	1	85 °C	-40 °C	TO-226-3 TO-92-3	Simple Reset/Power-On Reset	Active Low	TO-92-3
Analog Devices Inc./Maxim Integrated DS1233D-10+T&R	250 ms	Open Drain or Open Collector	4.375 V	Through Hole	1	85 °C	-40 °C	TO-226-3 TO-92-3	Simple Reset/Power-On Reset	Active Low	TO-92-3
Analog Devices Inc./Maxim Integrated DS1233DZ-15	250 ms	Open Drain or Open Collector	4.125 V	Surface Mount	1	85 °C	-40 °C	TO-261-4 TO-261AA	Simple Reset/Power-On Reset	Active Low	SOT-223-3
Analog Devices Inc./Maxim Integrated DS1233D-15+	250 ms	Open Drain or Open Collector	4.125 V	Through Hole	1	85 °C	-40 °C	TO-226-3 TO-92-3	Simple Reset/Power-On Reset	Active Low	TO-92-3
Analog Devices Inc./Maxim Integrated DS1233DZ-5/T&R	250 ms	Open Drain or Open Collector	4.625 V	Surface Mount	1	85 °C	-40 °C	TO-261-4 TO-261AA	Simple Reset/Power-On Reset	Active Low	SOT-223-3
Analog Devices Inc./Maxim Integrated DS1233DZ-15+T&R	250 ms	Open Drain or Open Collector	4.125 V	Surface Mount	1	85 °C	-40 °C	TO-261-4 TO-261AA	Simple Reset/Power-On Reset	Active Low	SOT-223-3
Analog Devices Inc./Maxim Integrated DS1233D-5+	250 ms	Open Drain or Open Collector	4.625 V	Through Hole	1	85 °C	-40 °C	TO-226-3 TO-92-3	Simple Reset/Power-On Reset	Active Low	TO-92-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.79
		10	$ 2.49
		25	$ 2.15
		100	$ 1.77
		250	$ 1.58
		500	$ 1.47
		1000	$ 1.38
		2500	$ 1.28
		5000	$ 1.22

Description

General part information

DS1233D Series

Supervisor Open Drain or Open Collector 1 Channel TO-92-3

Documents

Technical documentation and resources
