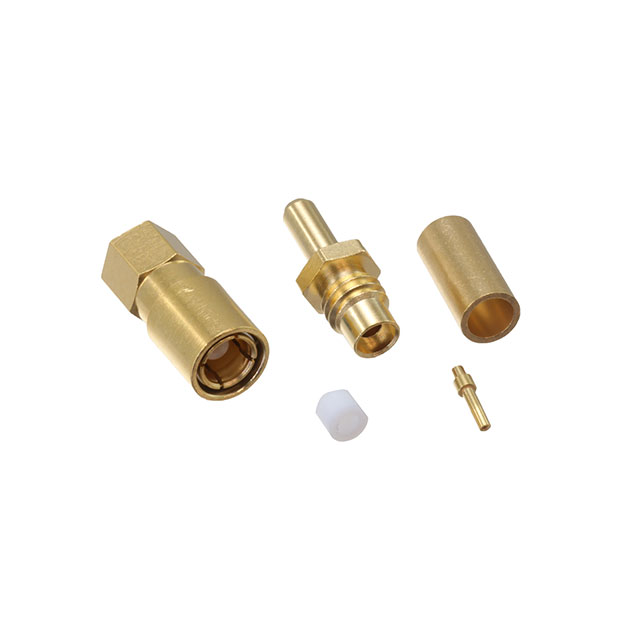

2002-1571-119

Active

Radiall USA, Inc.

SMB F STR NA CR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F STR NA CR

Technical Specifications

Parameters and characteristics for this part

Specification	2002-1571-119

Body Finish	Gold
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Center Contact Material	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Voltage Rating	Impedance	Shield Termination	Body Finish	Center Contact Plating	Contact Termination	Fastening Type	Frequency - Max [Max]	Mounting Type	Body Material	Dielectric Material	Housing Color	Mating Cycles	Cable Group
Radiall USA, Inc. 2002-1571-019	Beryllium Copper	SMB	Female Socket Plug	-65 ░C	165 °C	1	335 V	50 Ohms	Crimp	Gold	Gold	Crimp	Snap-On	4 GHz	Free Hanging (In-Line)	Brass	Polytetrafluoroethylene (PTFE)	Gold	500	RD-316
Radiall USA, Inc. 2002-1571-119	Beryllium Copper	SMB	Female Socket Plug	-65 ░C	165 °C	1		50 Ohms	Crimp	Gold	Gold	Crimp	Snap-On	4 GHz	Free Hanging (In-Line)	Brass	Polytetrafluoroethylene (PTFE)	Gold	500	RD-316

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
