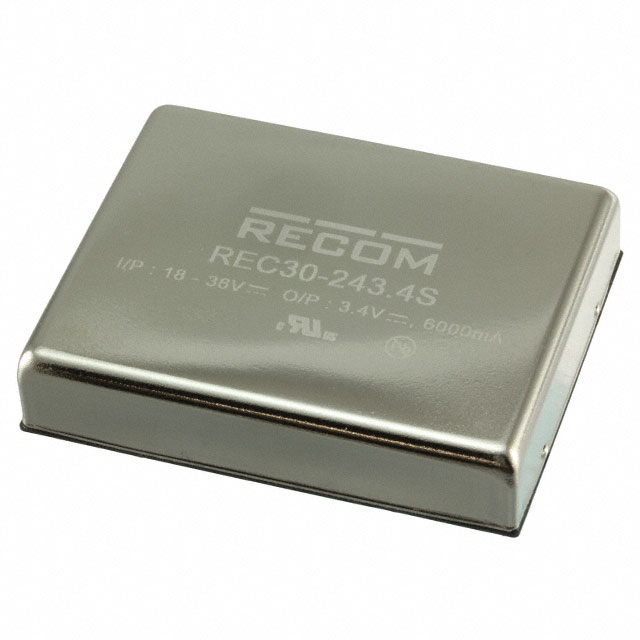

REC30-243.4S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 18-36VIN 3.4VOUT 6000MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REC30-243.4S

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 18-36VIN 3.4VOUT 6000MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC30-243.4S

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	6 A
Efficiency	87 %
Features	SCP, UVLO, Remote On/Off, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 6 Leads
Power (Watts)	30 W
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	40.64 mm
Size / Dimension [z]	0.4 in
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	3.4 V

REC30-243.4 Series

Isolated DC/DC Converters - Through Hole 30W 9-18Vin 15Vout 2000mA

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Features	Mounting Type	Voltage - Input (Max) [Max]	Control Features	Current - Output (Max) [Max]	Efficiency	Voltage - Isolation	Power (Watts)	Type	Package / Case	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Applications	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Package / Case
RECOM Power REC30-243.4S	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	36 V	Active High Enable	6 A	87 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	3.4 V	85 °C	-40 °C	18 V	ITE (Commercial)
RECOM Power REC30-2415DZ	0.4 in	50.8 mm	40.64 mm	2	OVP Remote On/Off SCP UVLO	Through Hole	36 V	Active High Enable		89 %	1.6 kV	30 W	Isolated Module	8-DIP Module 7 Leads	15 V	85 °C	-40 °C	9 V	ITE (Commercial)	1 A	1 A	-15 V
RECOM Power REC30-2415S	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	36 V	Active High Enable	2 A	89 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	15 V	85 °C	-40 °C	18 V	ITE (Commercial)
RECOM Power REC30-245.1S	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	36 V	Active High Enable	6 A	89 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	5.1 V	85 °C	-40 °C	18 V	ITE (Commercial)
RECOM Power REC30-4815D	0.4 in	50.8 mm	40.64 mm	2	OVP Remote On/Off SCP UVLO	Through Hole	75 V	Active High Enable		90.5 %	1.6 kV	30 W	Isolated Module	8-DIP Module 7 Leads	15 V	85 °C	-40 °C	36 V	ITE (Commercial)	1 A	1 A	-15 V
RECOM Power REC30-1212D	0.4 in	50.8 mm	40.64 mm	2	OVP Remote On/Off SCP UVLO	Through Hole	18 V	Active High Enable		87 %	1.6 kV	30 W	Isolated Module	8-SIP Module	12 V	85 °C	-40 °C	9 V	ITE (Commercial)	1.25 A		-12 V	7 Leads
RECOM Power REC30-4812S	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	75 V	Active High Enable	2.5 A	90 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	12 V	85 °C	-40 °C	36 V	ITE (Commercial)
RECOM Power REC30-2415SZ	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	36 V	Active High Enable	2 A	89 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	15 V	85 °C	-40 °C	9 V	ITE (Commercial)
RECOM Power REC30-483.4S	0.4 in	50.8 mm	40.64 mm	1	OVP Remote On/Off SCP UVLO	Through Hole	75 V	Active High Enable	6 A	87.5 %	1.6 kV	30 W	Isolated Module	8-DIP Module 6 Leads	3.4 V	85 °C	-40 °C	36 V	ITE (Commercial)
RECOM Power REC30-4812D	0.4 in	50.8 mm	40.64 mm	2	OVP Remote On/Off SCP UVLO	Through Hole	75 V	Active High Enable		89 %	1.6 kV	30 W	Isolated Module	8-DIP Module 7 Leads	12 V	85 °C	-40 °C	36 V	ITE (Commercial)	1.25 A		-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	11	$ 66.77
Sager	N/A	1	$ 71.09
		5	$ 66.65
		10	$ 62.73
		25	$ 58.42
		50	$ 56.13
		100	$ 54.68
		250	$ 52.01

Description

General part information

REC30-243.4 Series

Isolated DC/DC Converters - Through Hole 30W 9-18Vin 15Vout 2000mA
