C09131F0051002U

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG FMALE 5P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	C09131F0051002U

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Strain Relief
Ingress Protection	IP69K, IP65, IP67
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Voltage Rating	60 VDC

Part	Mounting Type	Features	Ingress Protection	Contact Finish - Mating	Shell Finish	Shielding	Voltage Rating	Connector Type	Shell Material	Color	Orientation	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Current Rating (Amps)
Amphenol Tuchel Industrial C09131F0051002U	Free Hanging (In-Line) Right Angle	Strain Relief	IP65 IP67 IP69K	Silver	Nickel	Shielded	60 VDC	Female Sockets Plug	Die Cast	Silver	Keyed	M16-5	100 °C	-40 °C	Metal	7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

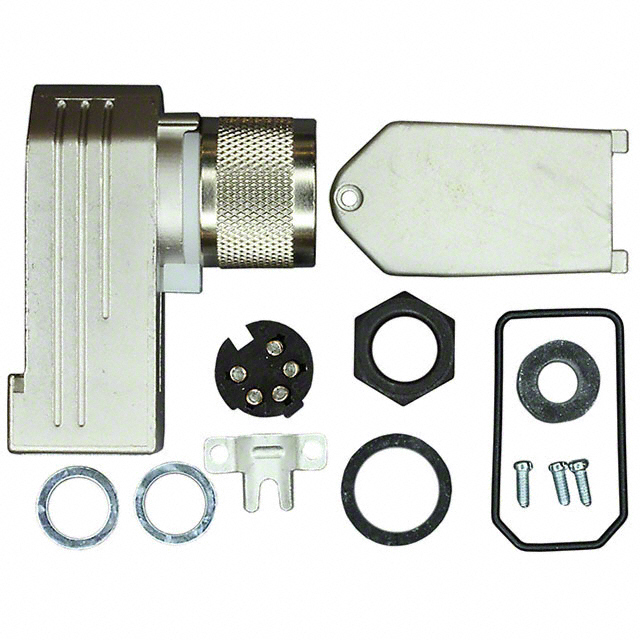

5 Position Circular Connector Plug, Female Sockets Solder Cup
