012520CD050

Active

Essentra Access Solutions

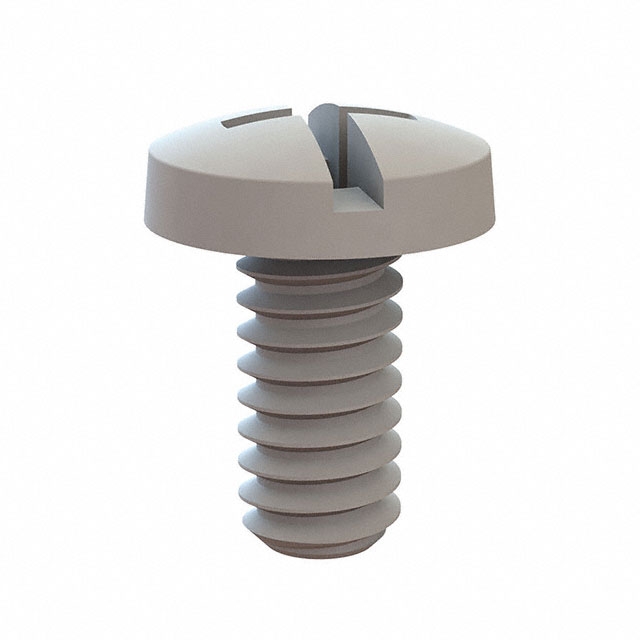

BINDER COMBINATION SCREW 1/4-20

Search across all available documentation for this part.

Active

Essentra Access Solutions

BINDER COMBINATION SCREW 1/4-20

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Length - Below Head [custom]	Length - Below Head [custom]	Head Height	Head Height	Type	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Screw Head Type	Material	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Below Head
Essentra Access Solutions 012520CD031	1/4"-20	7.94 mm	0.313 in	0.317 in	8.05 mm	Machine Screw	0.63 "	15.99 mm	12.99 mm	0.511 in	Combination	Binding Head	Nylon
Essentra Access Solutions 012520CD200	1/4"-20			0.317 in	8.05 mm	Machine Screw	2.317 "	58.85 mm	12.99 mm	0.511 in	Combination	Binding Head	Nylon	50.8 mm	2 in
Essentra Access Solutions 012520CD050	1/4"-20			0.317 in	8.05 mm	Machine Screw	0.817 in		12.99 mm	0.511 in	Combination	Binding Head	Nylon			12.7 mm	1/2	0.5 in	20.75 mm
Essentra Access Solutions 012520CD025	1/4"-20			0.317 in	8.05 mm	Machine Screw	0.567 in	14.4 mm	12.99 mm	0.511 in	Combination	Binding Head	Nylon			6.35 mm		0.25 in		0.25 in
Essentra Access Solutions 012520CD037	1/4"-20			0.317 in	8.05 mm	Machine Screw	0.692 in	17.58 mm	12.99 mm	0.511 in	Combination	Binding Head	Nylon			0.375 "		0.375 "		9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.08

General part information

1/4"-20 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
