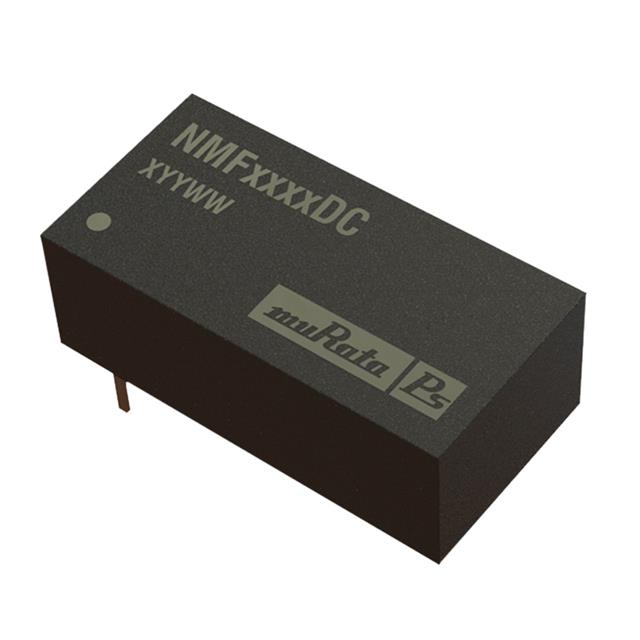

NMF2405DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NMF2405DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMF2405DC

Applications	ITE (Commercial)
Current - Output (Max) [Max]	100 mA
Efficiency	50 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	14-DIP Module, 5 Leads
Size / Dimension [x]	0.77 in, 19.6 mm
Size / Dimension [y]	0.39 ", 9.9 mm
Size / Dimension [z]	0.27 ", 6.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	25.2 V
Voltage - Input (Min) [Min]	22.8 V
Voltage - Isolation	1000 V
Voltage - Output 1	5 V

NMF24 Series

Part	Mounting Type	Type	Package / Case	Efficiency	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Power (Watts)
Murata Power Solutions Inc. NMF2405SC	Through Hole	Isolated Module	7-SIP Module 5 Leads	50 %	70 °C	1000 V	25.2 V	22.8 V	100 mA	5 V	1	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	ITE (Commercial)
Murata Power Solutions Inc. NMF2409DC	Through Hole	Isolated Module	14-DIP Module 5 Leads	62 %	70 °C	1000 V	25.2 V	22.8 V	100 mA	9 V	1							ITE (Commercial)	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMF2415SC	Through Hole	Isolated Module	7-SIP Module 5 Leads	62 %	70 °C	1000 V	25.2 V	22.8 V	67 mA	15 V	1	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	ITE (Commercial)
Murata Power Solutions Inc. NMF2405DC	Through Hole	Isolated Module	14-DIP Module 5 Leads	50 %	70 °C	1000 V	25.2 V	22.8 V	100 mA	5 V	1							ITE (Commercial)	0.77 in 19.6 mm	0.27 " 6.9 mm	0.39 " 9.9 mm
Murata Power Solutions Inc. NMF2412SC	Through Hole	Isolated Module	7-SIP Module 5 Leads	62 %	70 °C	1000 V	25.2 V	22.8 V	83 mA	12 V	1	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	ITE (Commercial)
Murata Power Solutions Inc. NMF2405SC	Through Hole	Isolated Module	7-SIP Module 5 Leads	50 %	70 °C	1000 V	25.2 V	22.8 V	100 mA	5 V	1	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	ITE (Commercial)				Adjustable Output	0.5 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NMF24 Series

Isolated Module DC DC Converter 1 Output 5V 100mA 22.8V - 25.2V Input
