1EBN1001AEXUMA1
ActiveEICEDRIVER™ 40 V HIGH-SIDE DRIVER IC. IT COMES WITH A NON-ISOLATED PG-DSO-14 PACKAGE AND WORKS WITH IGBTS. FEATURES: ACTIVE MILLER CLAMP, ACTIVE SHORT CIRCUIT
Deep-Dive with AI
Search across all available documentation for this part.
1EBN1001AEXUMA1
ActiveEICEDRIVER™ 40 V HIGH-SIDE DRIVER IC. IT COMES WITH A NON-ISOLATED PG-DSO-14 PACKAGE AND WORKS WITH IGBTS. FEATURES: ACTIVE MILLER CLAMP, ACTIVE SHORT CIRCUIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1EBN1001AEXUMA1 |
|---|---|
| Channel Type | Single |
| Driven Configuration | High-Side, Low-Side |
| Grade | Automotive |
| High Side Voltage - Max (Bootstrap) [Max] | 1200 V |
| Logic Voltage - VIL, VIH [custom] | 3.5 V |
| Logic Voltage - VIL, VIH [custom] | 1.5 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |

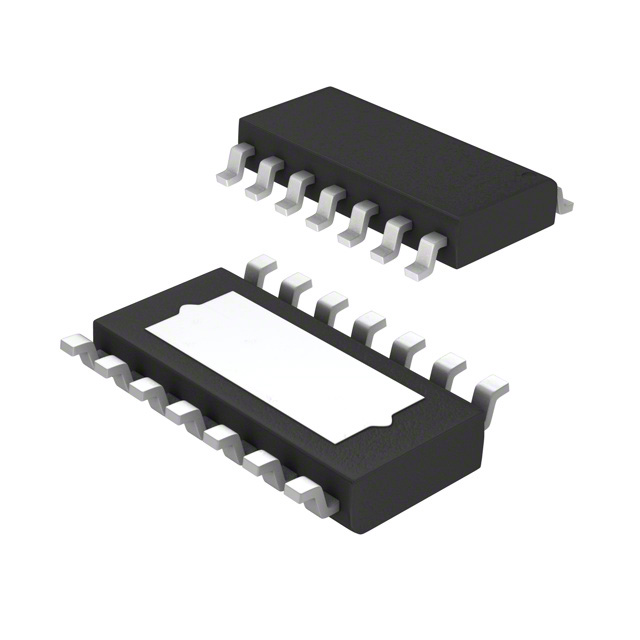

| Package / Case | 14-SOIC Exposed Pad |
| Package / Case | 0.154 in |
| Package / Case [custom] | 3.9 mm |
| Qualification | AEC-Q100 |
| Rise / Fall Time (Typ) [custom] | 90 ns |
| Rise / Fall Time (Typ) [custom] | 50 ns |
| Supplier Device Package | PG-DSO-14-43 |
| Voltage - Supply [Max] | 18 V |
| Voltage - Supply [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.51 | |
| 10 | $ 2.25 | |||
| 25 | $ 2.13 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.75 | |||
| 500 | $ 1.66 | |||
| Digi-Reel® | 1 | $ 2.51 | ||
| 10 | $ 2.25 | |||
| 25 | $ 2.13 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.75 | |||
| 500 | $ 1.66 | |||
| Tape & Reel (TR) | 2500 | $ 1.66 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 3.52 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.35 | |||
| 50 | $ 2.28 | |||
| 100 | $ 2.19 | |||
| 250 | $ 2.08 | |||
| 500 | $ 2.01 | |||
| 1000 | $ 1.96 | |||
Description
General part information
1EBN1001 Series
IGBT / MOSFET gate driver booster for automotive motor drives above 10 kW, peak current up to ±15 A, support for active clamping with very fast reaction time, active clamping disable and ASC Input signals
