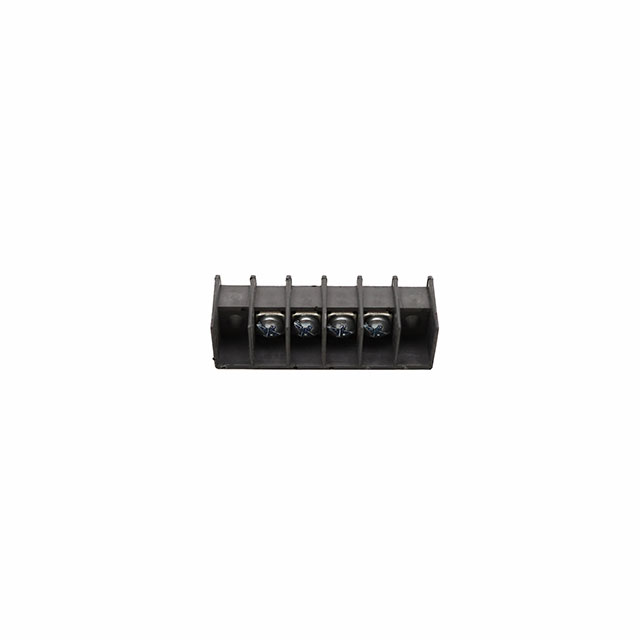

325200-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

325200-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325200-04-0

Barrier Type	3 Wall (Tri)
Bottom Termination	Closed
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325200 Series

Part	Material - Insulation	Terminal Screw Material	Barrier Type	Bottom Termination	Terminal Block Type	Number of Rows	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Features	Number of Wire Entries	Number of Circuits	Pitch [x]	Pitch [x]	Mounting Type	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Top Termination
Curtis Industries 325200-21-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	21	21	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-12-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	12	12	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-09-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	9		8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-05-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	5	5	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-10-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	10	10	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-03-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	3	3	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-25-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	25	25	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-11-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	11	11	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-06-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	6	6	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws
Curtis Industries 325200-04-0	Polypropylene (PP)	Steel	3 Wall (Tri)	Closed	Barrier Block	1	105 C	14 AWG	22 AWG	Flange	4	4	8.26 mm	0.325 in	Chassis Panel	15 A	300 VDC	UL94 V-0	Screws

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.86
		10	$ 2.18
		30	$ 2.04
		50	$ 1.82
		100	$ 1.78
		250	$ 1.74

Description

General part information

325200 Series

4 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
