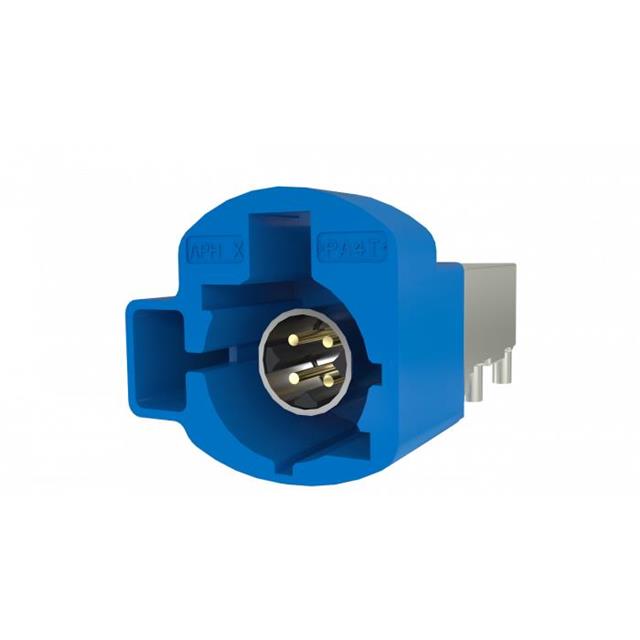

HSDNCRPPCB7A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 R/A T/H CODE C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSDNCRPPCB7A
ActiveAmphenol ICC (Commercial Products)
HSD 4+2 R/A T/H CODE C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSDNCRPPCB7A |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Alloy |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Fastening Type | Latch Lock |
| Features | Code C |
| Housing Color | Blue |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.85 | |
| 10 | $ 2.17 | |||
| 25 | $ 1.96 | |||
| 50 | $ 1.81 | |||
| 100 | $ 1.68 | |||
| Tape & Reel (TR) | 250 | $ 1.19 | ||
| 500 | $ 1.11 | |||
| 750 | $ 1.06 | |||
| 1250 | $ 1.01 | |||
| 1750 | $ 0.97 | |||
| 2500 | $ 0.94 | |||
| 6250 | $ 0.86 | |||
Description
General part information
HSDNCRPP Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin Through Hole, Right Angle Solder
