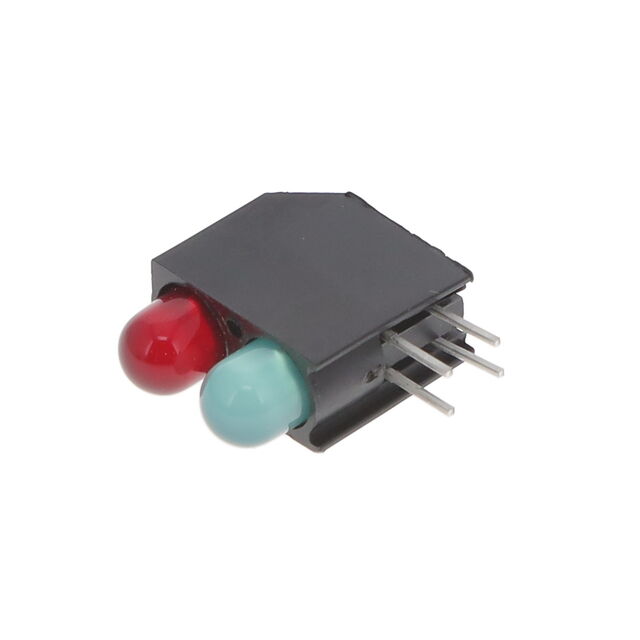

5520912F

Active

DIALIGHT

LED CBI 5MM BI-LVL GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5520912F

Active

DIALIGHT

LED CBI 5MM BI-LVL GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5520912F

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current [custom]	7 mA
Current [custom]	7 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating [custom]	2.3 mcd
Millicandela Rating [custom]	1.8 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	50 °
Voltage Rating	1.7 V, 1.8 V
Wavelength - Peak	565 nm, 635 nm

5520912 Series

Part	Configuration	Color	Current [custom]	Current [custom]	Lens Size	Lens Size	Voltage Rating	Wavelength - Peak	Viewing Angle	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Mounting Type	Lens Type
DIALIGHT 5520912F	2 High	Green (x 1) Red (x 1)	7 mA	7 mA	T-1 3/4	5 mm	1.7 V 1.8 V	565 nm 635 nm	50 °	2.3 mcd	1.8 mcd	Round with Domed Top	Through Hole Right Angle	Diffused Tinted

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.59
		10	$ 1.03
		100	$ 0.75
		500	$ 0.73

Description

General part information

5520912 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 1.8V Green, 1.7V Red 7mA Green, 7mA Red Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
