BT4S-M2

Active

Panduit Corp

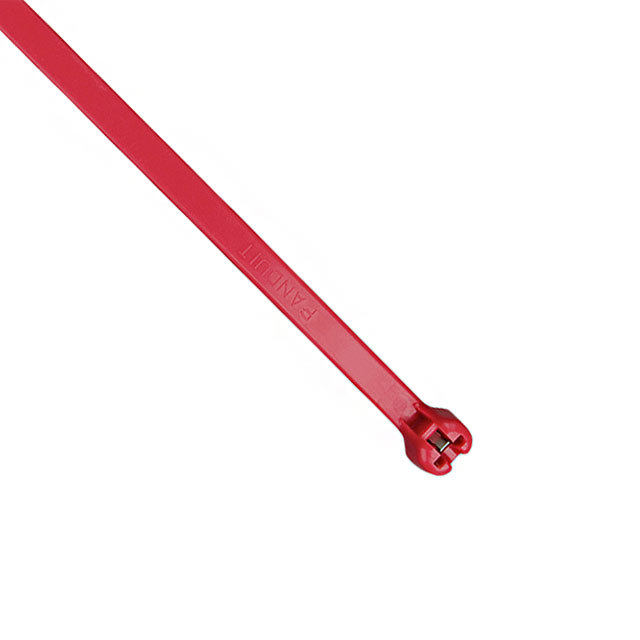

DOME-TOP BARB TY CABLE TIE, LOCKING, 15.1", STANDARD, NYLON 6.6, RED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

DOME-TOP BARB TY CABLE TIE, LOCKING, 15.1", STANDARD, NYLON 6.6, RED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Length - Approximate	Tensile Strength	Tensile Strength	Color	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Mounting Type	Width [x]	Width [x]	Material	Features
Panduit Corp BT4S-M10	15 in	22.68 kg	50 lbs	White	4 in	101.6 mm	Locking Standard	384 mm	1.26 ft	Free Hanging (In-Line)	4.7 mm	0.185 in	Polyamide (PA66) Nylon 6/6
Panduit Corp BT4S-M3	15 in	22.68 kg	50 lbs		4 in	101.6 mm	Locking Standard	384 mm	1.26 ft	Free Hanging (In-Line)	4.7 mm	0.185 in	Polyamide (PA66) Nylon 6/6
Panduit Corp BT4S-M30	15 in	22.68 kg	50 lbs	Black	4 in	101.6 mm	Locking Standard	384 mm	1.26 ft	Free Hanging (In-Line)	4.7 mm	0.185 in	Polyamide (PA66) Nylon 6/6	Heat Stabilized
Panduit Corp BT4S-M300	15 in	22.68 kg	50 lbs	Black	4 in	101.6 mm	Locking Standard	384 mm	1.26 ft	Free Hanging (In-Line)	4.7 mm	0.185 in	Polyamide (PA66) Nylon 6/6	Heat Stabilized Weather Resistant
Panduit Corp BT4S-M2	15 in	22.68 kg	50 lbs	Red	4 in	101.6 mm	Locking Standard	384 mm	1.26 ft	Free Hanging (In-Line)	4.7 mm	0.185 in	Polyamide (PA66) Nylon 6/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standard, Locking Red 4.00" (101.60mm) 0.185" (4.70mm) 50 lbs (22.68 kg)
