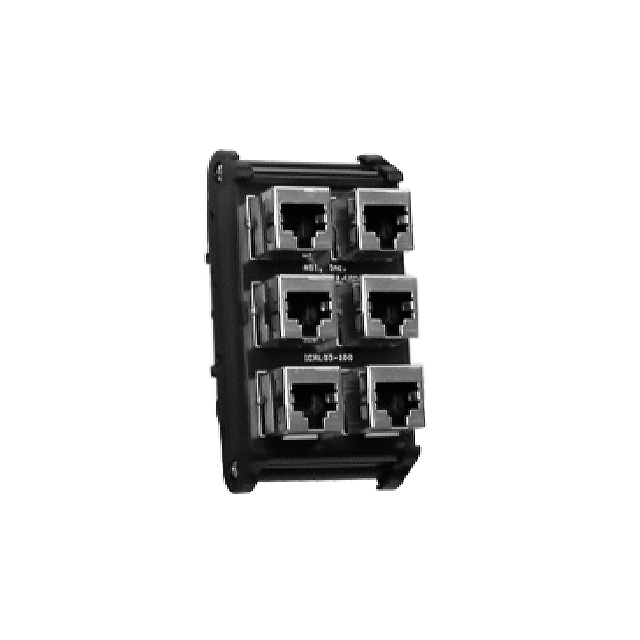

DRRJ45P6

Active

RED LION CONTROLS

RJ45 PARALLEL CONNECTOR

Search across all available documentation for this part.

Active

RED LION CONTROLS

RJ45 PARALLEL CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	DRRJ45P6

Connector Type	Jack
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	6
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	3
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

Part	Number of Positions/Contacts	Mounting Type	Termination	Number of Rows	Shielding	LED Color	Tab Direction	Connector Type	Orientation	Number of Ports
RED LION CONTROLS DRRJ45P6	8p8c (RJ45 Ethernet)	Through Hole	Solder	3	Unshielded	Does Not Contain LED	User Selectable	Jack	Vertical	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 174.80

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded

Technical documentation and resources

No documents available
