H/MS3057-12A1(73)

Obsolete

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ20 22 BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

H/MS3057-12A1(73)

Obsolete

Hirose Electric USA, Inc.

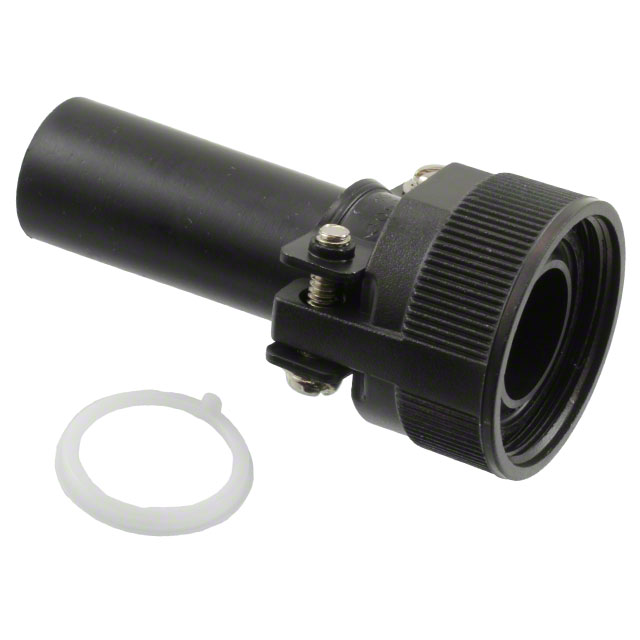

CONN CABLE CLAMP SZ20 22 BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H/MS3057-12A1(73)

Cable Exit	180 °
Cable Opening [Max] [diameter]	15.9 mm
Cable Opening [Max] [diameter]	0.625 in
Cable Opening [Min] [diameter]	11.4 mm
Cable Opening [Min] [diameter]	0.449 in
Color	Black
Diameter - Outside [diameter]	34 mm
Diameter - Outside [diameter]	1.339 in
Features	Clamp Screws
For Use With/Related Products	H/MS Series Connector
Ingress Protection	Waterproof
Material	Aluminum Alloy
Material Flammability Rating	UL94 V-0
Plating	Chromate
Shell Size - Insert	20, 22
Type	Cable Clamp

H/MS Series

Part	Cable Exit	Shell Size - Insert	For Use With/Related Products	Color	Features	Type	Material	Ingress Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material Flammability Rating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Plating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	Tool Type	Connector Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Primary Material	Backshell Material, Plating	Shell Finish	Mounting Type	Shielding	Contact Finish - Mating	Shell Material	Contact Material	Cable Opening [Max] [diameter]	Voltage Rating	Current Rating (Amps)	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Insert Material	Thread Size	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. H/MS3057-12A1(73)	180 °	20 22	H/MS Series Connector	Black	Clamp Screws	Cable Clamp	Aluminum Alloy	Waterproof	34 mm	1.339 in	UL94 V-0	15.9 mm	11.4 mm	0.625 in	0.449 in	Chromate
Hirose Electric USA, Inc. H/MS/CC-HT			Circular Contacts														24 AWG	28 AWG	Side Entry	Hand Crimper
Hirose Electric USA, Inc. H/MS3106A18-10S-D-T(73)		18-10		Black	Backshell Coupling Nut Ground			IP67/IP68 - Dust Tight Waterproof													Female Sockets Plug	4	125 °C	-40 °C	N	Metal	Aluminum Alloy Black Chromate	Black Chromate	Free Hanging (In-Line)	Unshielded	Silver	Aluminum Alloy	Copper Alloy
Hirose Electric USA, Inc. H/MS3057-4A(73)	180 °	10SL	H/MS Series Connector	Black	Clamp Screws	Cable Clamp	Aluminum Alloy	Waterproof	20 mm	0.787 in	UL94 V-0		3.1 mm	0.22 in	0.122 in	Chromate																		5.6 mm
Hirose Electric USA, Inc. H/MS3102A22-14P-N(73)		22-14		Black				IP67/IP68 - Dust Tight Waterproof													Male Pins Receptacle	19	125 °C	-40 °C	N	Metal		Black Chromate		Unshielded	Silver	Aluminum Alloy	Copper Alloy		500 VAC 700 VDC	13 A	Flange
Hirose Electric USA, Inc. H/MS08A22-22S-DT12D(73)				Black	Backshell Cable Clamp Coupling Nut Ground			IP67/IP68 - Dust Tight Waterproof			UL94 V-0	15.9 mm	13 mm	0.626 in	0.512 in						Female Sockets Plug	4	125 °C	-40 °C	N	Metal	Aluminum Alloy Black Chromate	Black Chromate	Free Hanging (In-Line) Right Angle	Unshielded	Silver	Aluminum Alloy	Copper Alloy					78.7 µin	2 µm	22	22	Polyphenylene Sulfide (PPS)
Hirose Electric USA, Inc. H/MS3108B22-22S(73)				Black	Backshell Coupling Nut			IP67/IP68 - Dust Tight Waterproof													Female Sockets Plug	4	125 °C	-40 °C	N	Metal	Black Chromate Zinc Alloy	Black Chromate	Free Hanging (In-Line) Right Angle	Unshielded	Silver	Aluminum Alloy	Copper Alloy		500 VAC 700 VDC	46 A				22	22
Hirose Electric USA, Inc. H/MS3057-12A(31)	180 °	20 22	H/MS Series Connector	Black	Bushing Clamp Screws	Cable Clamp	Aluminum Alloy	Waterproof	34 mm	1.339 in						Black Chromate														Unshielded													1 3/16-18 UNEF-2B	15.9 mm	0.626 in
Hirose Electric USA, Inc. H/MS08A18-10S-DT10D1(73)		18-10		Black	Backshell Cable Clamp Coupling Nut Ground			IP67/IP68 - Dust Tight Waterproof			UL94 V-0										Female Sockets Plug	4	125 °C	-40 °C	N	Metal	Aluminum Alloy Black Chromate	Black Chromate	Free Hanging (In-Line) Right Angle	Unshielded	Silver	Aluminum Alloy	Copper Alloy					78.7 µin	2 µm			Polyphenylene Sulfide (PPS)
Hirose Electric USA, Inc. H/MS3102A10SL-4P(73)		10SL-4		Black				IP67/IP68 - Dust Tight Waterproof			UL94 V-0										Male Pins Receptacle	2	125 °C	-40 °C	N	Metal		Black Chromate		Unshielded	Silver	Aluminum Alloy	Brass		500 VAC 700 VDC	13 A	Flange	78.7 µin	2 µm			Polybutylene Terephthalate (PBT)		15.6 mm	0.614 in
