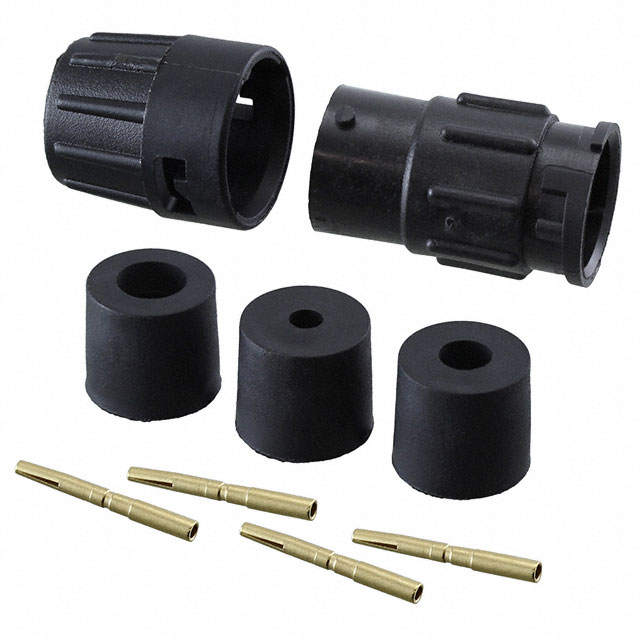

8280-4SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-4SG-3DC

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8280-4SG-3DC

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

8280-4SG Series

Part	Number of Positions	Color	Features	Voltage Rating	Fastening Type	Shielding	Orientation	Contact Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Mounting Type	Contact Finish - Mating	Backshell Material, Plating	Current Rating (Amps)	Applications	Primary Material	Termination	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 8280-4SG-315	4	Black	Backshell	600 V	Bayonet Lock	Unshielded	Keyed	Brass	Weathertight	-40 °C	115 °C	Receptacle Female Sockets	0.15 in 0.17 in	3.81 mm 4.32 mm	Free Hanging (In-Line)	Gold	Nylon Polyamide (PA)	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Plastic	Crimp
Conxall/Switchcraft 8280-4SG-516	4	Black	Backshell	600 V	Bayonet Lock	Unshielded	Keyed	Brass	Weathertight	-40 °C	115 °C	Receptacle Female Sockets			Free Hanging (In-Line)	Gold	Nylon Polyamide (PA)	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Plastic	Crimp	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8280-4SG-513	4	Black	Backshell	600 V	Bayonet Lock	Unshielded	Keyed	Brass	Weathertight	-40 °C	115 °C	Receptacle Female Sockets	0.13 in 0.15 in	3.3 mm 3.81 mm	Free Hanging (In-Line)	Gold	Nylon Polyamide (PA)	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Plastic	Crimp
Conxall/Switchcraft 8280-4SG-311	4	Black	Backshell	600 V	Bayonet Lock	Unshielded	Keyed	Brass	Weathertight	-40 °C	115 °C	Receptacle Female Sockets			Free Hanging (In-Line)	Gold	Nylon Polyamide (PA)	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Plastic	Crimp					2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 8280-4SG-3DC	4	Black	Backshell	600 V	Bayonet Lock	Unshielded	Keyed	Brass	Weathertight	-40 °C	115 °C	Receptacle Female Sockets			Free Hanging (In-Line)	Gold	Nylon Polyamide (PA)	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Plastic	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.30
		10	$ 5.67
		25	$ 5.34
		50	$ 5.21
		100	$ 5.07
		300	$ 4.83

Description

General part information

8280-4SG Series

4 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
