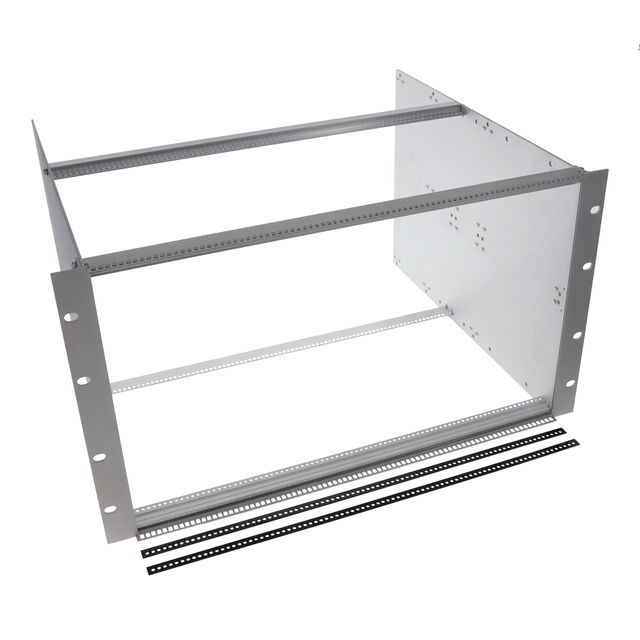

CCA32-84-00

Active

Vector Electronics

IEEE 1101.10,6U X 15"D X 19"W FOR 220MM

Search across all available documentation for this part.

Active

Vector Electronics

IEEE 1101.10,6U X 15"D X 19"W FOR 220MM

Technical Specifications

Parameters and characteristics for this part

Specification	CCA32-84-00

Card Size Range [x]	8.66 in
Card Size Range [x]	219.96 mm
Card Size Range [z]	233.35 mm
Card Size Range [z]	9.187 in
Guide Method	Guide Plate
Height [z]	6U
Height [z]	266.7 mm
Height [z]	266.7 mm
Material	Aluminum
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Subracks with Card Guides

Part	Guide Method	Card Size Range [x]	Card Size Range [z]	Card Size Range [x]	Card Size Range [z]	Material	Height [z]	Height [z]	Height [z]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Vector Electronics CCA32-84-00	Guide Plate	8.66 in	233.35 mm	219.96 mm	9.187 in	Aluminum	6U	266.7 mm	266.7 mm	Assembled Subracks with Card Guides	12 in	304.8 mm	482.6 mm	19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Subracks with Card Guides 6U = 10.500" (266.70mm)
