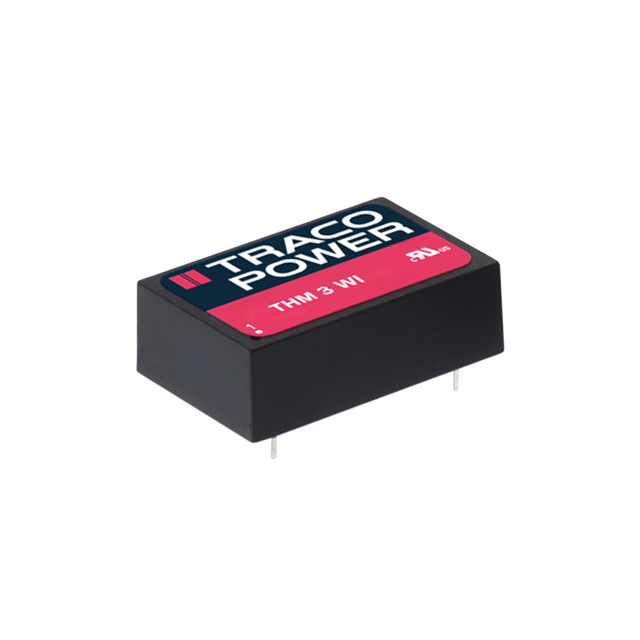

THM 3-2422WI

Active

Traco Power

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTHM 3WI Certs Datasheet

THM 3-2422WI

Active

Traco Power

DC DC CONVERTER +/-12V 3W

Deep-Dive with AI

DocumentsTHM 3WI Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THM 3-2422WI

Applications	Medical
Current - Output (Max)	125 mA
Current - Output (Max)	125 mA
Efficiency	87.5 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 6 Leads
Power (Watts)	3 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	5000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

THM 3 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Package / Case	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Features	Efficiency	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power THM 3-4812WI	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	18 V	Through Hole	3 W	OCP OVP SCP	87 %	1	75 V	250 mA
Traco Power THM 3-4822	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	18 V	Through Hole	3 W	OCP OVP SCP	86 %	2	75 V		-12 V	125 mA	125 mA
Traco Power THM 3-2423WI	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	15 V	24-DIP Module 6 Leads	9 V	Through Hole	3 W	OCP OVP SCP	86 %	2	36 V		-15 V	100 mA		100 mA
Traco Power THM 3-2423	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	15 V	24-DIP Module 6 Leads	9 V	Through Hole	3 W	OCP OVP SCP	86 %	2	36 V		-15 V	100 mA		100 mA
Traco Power THM 3-0522	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	4.5 V	Through Hole	3 W	OCP OVP SCP	86 %	2	9 V		-12 V	125 mA	125 mA
Traco Power THM 3-1212	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	9 V	Through Hole	3 W	OCP OVP SCP	87 %	1	18 V	250 mA
Traco Power THM 3-2410	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	3.3 V	24-DIP Module 6 Leads	9 V	Through Hole	3.3 W	OCP OVP SCP		1	36 V	1 A
Traco Power THM 3-2422WI	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	9 V	Through Hole	3 W	OCP OVP SCP	87.5 %	2	36 V		-12 V	125 mA	125 mA
Traco Power THM 3-4810WI	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	3.3 V	24-DIP Module 6 Leads	18 V	Through Hole	3.3 W	OCP OVP SCP	81 %	1	75 V	1 A
Traco Power THM 3-4812	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	5000 V	Medical	90 °C	-40 °C	12 V	24-DIP Module 6 Leads	18 V	Through Hole	3 W	OCP OVP SCP	87 %	1	75 V	250 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 52.16
		10	$ 47.94
		25	$ 46.36
		50	$ 45.19
		100	$ 44.06
		250	$ 38.48
