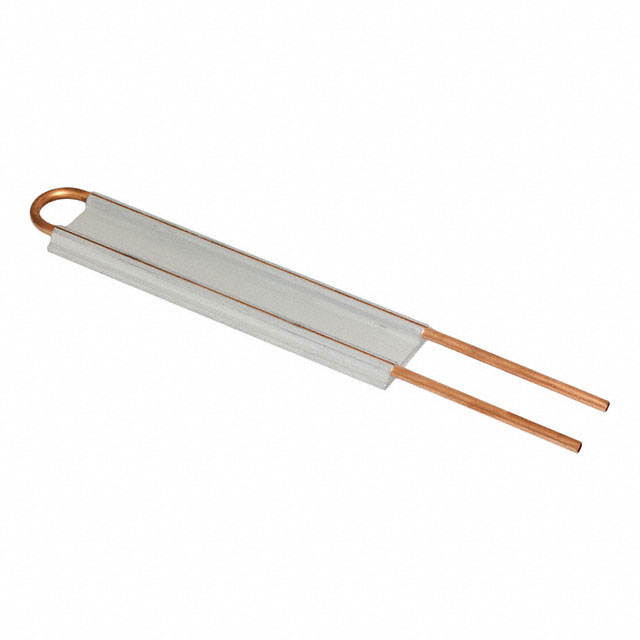

180-10-12C
ActiveWakefield-Vette
COLD PLATE HEAT SINK 0.041C/W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
180-10-12C
ActiveWakefield-Vette
COLD PLATE HEAT SINK 0.041C/W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-10-12C |
|---|---|
| Dimensions - Overall [x] | 429.9 mm |
| Dimensions - Overall [x] | 19.41 " |
| Dimensions - Overall [y] | 3 in |
| Dimensions - Overall [y] | 76.2 mm |
| Dimensions - Overall [z] | 15.9 mm |
| Dimensions - Overall [z] | 0.63 in |
| Product Type | Passive, Cold Plate |
| Thermal Resistance @ GPM | 0.041 °C/W |
| Weight | 771.1 g |
| Weight | 1.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.19 | |
| 10 | $ 62.05 | |||
| 25 | $ 57.92 | |||
| 50 | $ 55.85 | |||
| 100 | $ 53.78 | |||
Description
General part information
180-10 Series
Passive, Cold Plate 0.041°C/W @ 1.5 GPM
