1430-20-1-0500-003-1-TS

Active

CnC Tech, LLC

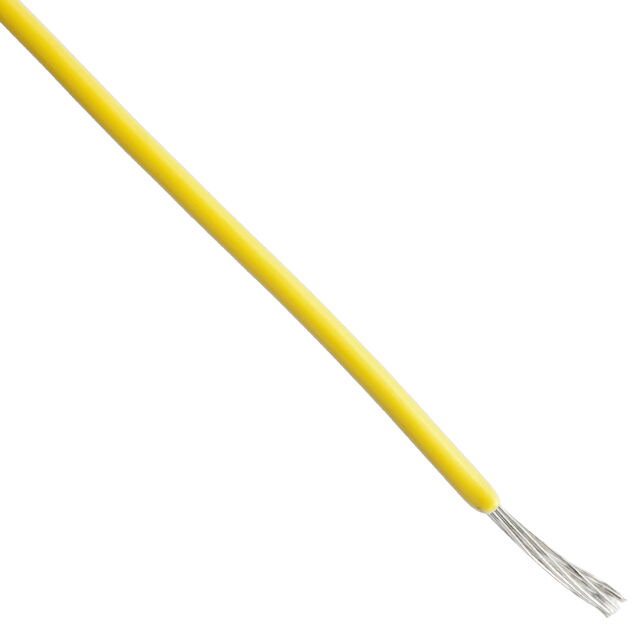

HOOK-UP STRND 20AWG YEL 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1430-20-1-0500-003-1-TS

Active

CnC Tech, LLC

HOOK-UP STRND 20AWG YEL 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1430-20-1-0500-003-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	0.0071 in
Conductor Strand [custom]	21
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (XLPVC), Irradiated
Jacket (Insulation) Thickness	0.38 mm
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Yellow
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style 1430
Voltage	300 V
Wire Gauge	20 AWG

1430-20 Series

Part	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Length [x]	Length [x]	Length	Voltage	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge
CnC Tech, LLC 1430-20-1-0500-005-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Blue	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	15.24 m	300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG
CnC Tech, LLC 1430-20-1-0500-007-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Green	152.4 m	50 ft 500 '	15.24 m	300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG
CnC Tech, LLC 1430-20-1-0500-008-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Orange	7.62 m 30.5 m 152.4 m	25 ft 100 ft 500 '		300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG
CnC Tech, LLC 1430-20-1-0500-011-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Green Yellow	7.62 m 30.5 m 152.4 m	25 ft 100 ft 500 '		300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG
CnC Tech, LLC 1430-20-1-0500-001-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Black	30.5 m	50 ft 100 ft	15.24 m	300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG
CnC Tech, LLC 1430-20-1-0500-003-1-TS	UL Style 1430	0.38 mm	0.015 in	Oil Resistant	0.069 in	1.75 mm	Copper Tinned	Yellow	30.5 m	100 ft		300 V	Poly-Vinyl Chloride (XLPVC) Irradiated	105 ░C	-10 °C	Hook-Up	0.0071 in	21	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 24.46
		3	$ 22.83
		5	$ 21.83
		10	$ 20.70
		25	$ 19.45
		50	$ 18.44
		100	$ 17.56
		500	$ 16.31

Description

General part information

1430-20 Series

20 AWG Hook-Up Wire 21/0.0071" Yellow 300V 100.0' (30.5m)
