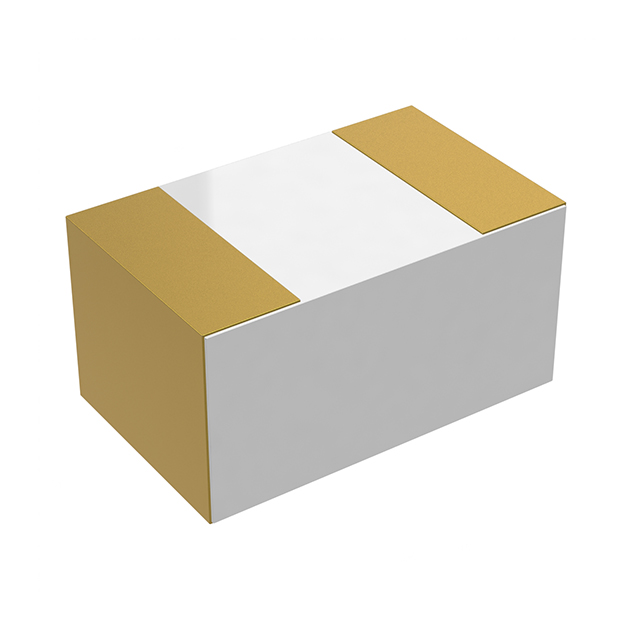

QB0805A40WCAT

Obsolete

Kyocera AVX

THERMAL CONDUCTOR

Search across all available documentation for this part.

Obsolete

Kyocera AVX

THERMAL CONDUCTOR

Technical Specifications

Parameters and characteristics for this part

Part	Thermal Conductivity	Thermal Conductivity	Outline [y]	Outline [x]	Usage	Shape	Thermal Resistivity	Thickness	Thickness	Material	Type
Kyocera AVX QB0805B40ESC	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Beryllium Oxide	Thermal Bridge Jumper
Kyocera AVX QB0805B40WYC	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Beryllium Oxide	Thermal Bridge Jumper
Kyocera AVX QB0805A40WYT\500	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Aluminum Nitride	Thermal Bridge Jumper
Kyocera AVX QB0805B40EST	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Beryllium Oxide	Thermal Bridge Jumper
Kyocera AVX QB0805B40WCAT	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Beryllium Oxide	Thermal Bridge Jumper
Kyocera AVX QB0805A40WCAT	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Aluminum Nitride	Thermal Bridge Jumper
Kyocera AVX QB0805B40WYT	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Beryllium Oxide	Thermal Bridge Jumper
Kyocera AVX QB0805A40EST	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Aluminum Nitride	Thermal Bridge Jumper
Kyocera AVX QB0805A40WYT	100 W/m-K	156 W/m-K	1.27 mm	2.03 mm	Heat Transfer	Rectangular	7 °C/W 10 °C/W	0.0402 in	1.02 mm	Aluminum Nitride	Thermal Bridge Jumper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Thermal Pad 2.03mm x 1.27mm Rectangular
