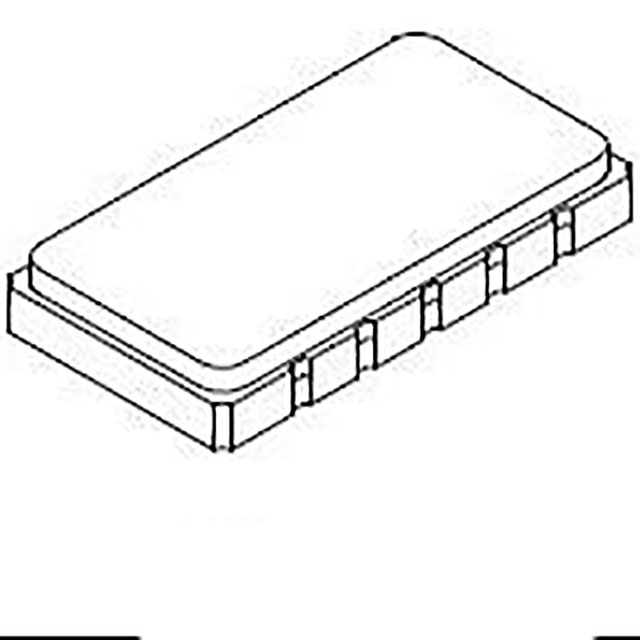

SF2229A
ActiveRFMi
FILTER, SAW, 70 MHZ, 12SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2229A
ActiveRFMi
FILTER, SAW, 70 MHZ, 12SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2229A |
|---|---|
| Applications | IF |
| Bandwidth | 1.2 MHz, 920 kHz, 2.2 MHz |
| Frequency - Center | 70 MHz |
| Height (Max) [Max] | 0.071 in |
| Height (Max) [Max] | 1.8 mm |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD, No Lead |
| Size / Dimension [x] | 0.524 in |
| Size / Dimension [x] | 13.3 mm |
| Size / Dimension [y] | 6.5 mm |
| Size / Dimension [y] | 0.256 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 12.34 | |
| Tape & Reel (TR) | 1 | $ 6.17 | ||
| 1 | $ 6.79 | |||
Description
General part information
SF2229 Series
70MHz Frequency IF RF SAW Filter (Surface Acoustic Wave) 10.5dB 920kHz, 1.2MHz, 2.2MHz Bandwidth 12-SMD, No Lead
