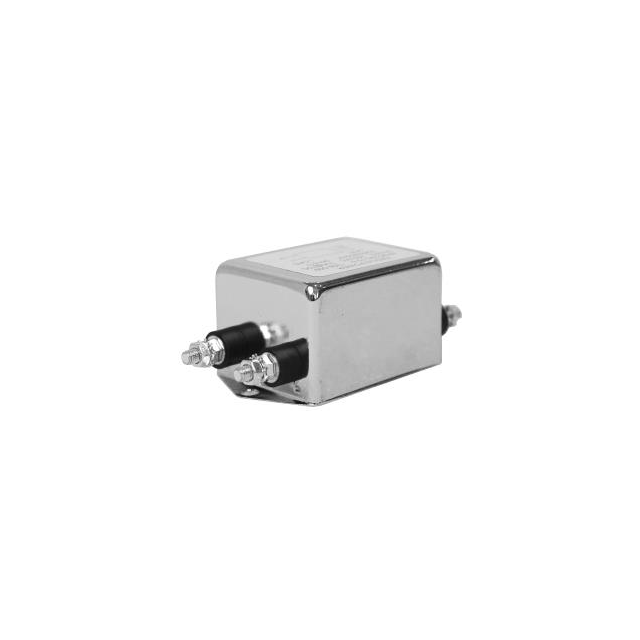

RPM7020-5-S 10NF

Active

Astrodyne TDI

LINE FILTER 300VAC 5A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 300VAC 5A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Voltage - Rated AC	Current
Astrodyne TDI RPM7020-15-QD	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Quick Connect	300 V	15 A
Astrodyne TDI RPM7020-10-QD	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Quick Connect	300 V	10 A
Astrodyne TDI RPM7020-5-S 10NF	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Threaded Post (M5)	300 V	5 A
Astrodyne TDI RPM7020-20-S	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Threaded Post (M5)	300 V	20 A
Astrodyne TDI RPM7020-10-S	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Threaded Post (M5)	300 V	10 A
Astrodyne TDI RPM7020-10-S 10NF	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Threaded Post (M5)	300 V	10 A
Astrodyne TDI RPM7020-20-QD	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Quick Connect	300 V	20 A
Astrodyne TDI RPM7020-20-QD 10NF	Single Phase	Two Stage	100 °C	-40 °C	Chassis Mount	60 Hz 400 Hz	50 Hz	Quick Connect	300 V	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 401.25

General part information

Single Phase EMC/EMI Line Filter 5 A 300V 50/60Hz, 50/400Hz Two Stage Threaded Post (M5)

Technical documentation and resources
