M83513/04-C01N

Active

ITT Cannon, LLC

CONN MICRO-D SKT 21 POS 1.27MM CRIMP ST PANEL MOUNT 21 TERMINAL 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

M83513/04-C01N

Active

ITT Cannon, LLC

CONN MICRO-D SKT 21 POS 1.27MM CRIMP ST PANEL MOUNT 21 TERMINAL 1 PORT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/04-C01N

1st Connector	Receptacle, Female Sockets
2nd Connector	Individual Wire Leads
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	21
Shielding	Unshielded
Type	D-Type, Micro-D

M83513/04 Series

Part	Number of Positions	Type	Contact Finish	2nd Connector	Color	Shielding	1st Connector	Length [x]	Length [x]	Contact Finish Thickness	Contact Finish Thickness
ITT Cannon, LLC M83513/04-A11C	9	D-Type Micro-D	Gold	Individual Wire Leads	Individual Multiple	Unshielded	Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-F04N	37	D-Type Micro-D	Gold	Individual Wire Leads	Individual Multiple		Female Sockets Receptacle	914.4 mm	3 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-F04C	37	D-Type Micro-D	Gold	Individual Wire Leads	Individual Multiple		Female Sockets Receptacle	914.4 mm	3 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-B04C	15	DB15	Gold	Individual Wire Leads	Individual Multiple		Female Sockets Receptacle	914.4 mm	3 ft
ITT Cannon, LLC M83513/04-H01C	100	D-Type Micro-D	Gold	Individual Wire Leads		Unshielded	Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-C11N	21	D-Type Micro-D	Gold	Individual Wire Leads	Individual Multiple	Unshielded	Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-D01N		D-Type Micro-D	Gold	Individual Wire Leads		Unshielded	Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-F03N	37	D-Type Micro-D	Gold	Individual Wire Leads	Individual Multiple		Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm
ITT Cannon, LLC M83513/04-B04N	15	DB15	Gold	Individual Wire Leads	Individual Multiple		Female Sockets Receptacle	914.4 mm	3 ft
ITT Cannon, LLC M83513/04-C01N	21	D-Type Micro-D	Gold	Individual Wire Leads		Unshielded	Female Sockets Receptacle	457.2 mm	1.5 ft	50 µin	1.27 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 123.62
		10	$ 120.00
		25	$ 116.58
		50	$ 114.59
Digikey	Bulk	1	$ 729.27
		1	$ 41.11

Description

General part information

M83513/04 Series

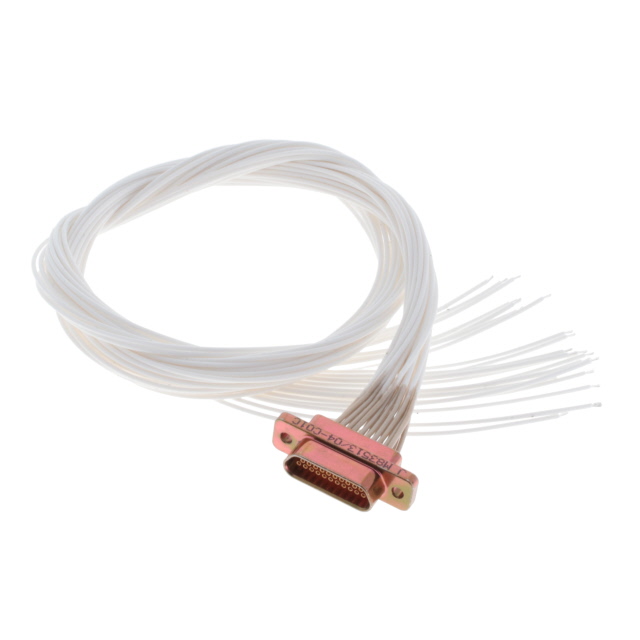

D-Sub Cable Assembly D-Type, Micro-D White, Individual 1.50' (457.20mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Documents

Technical documentation and resources

No documents available
