PX0744/S

Active

BULGIN LIMITED

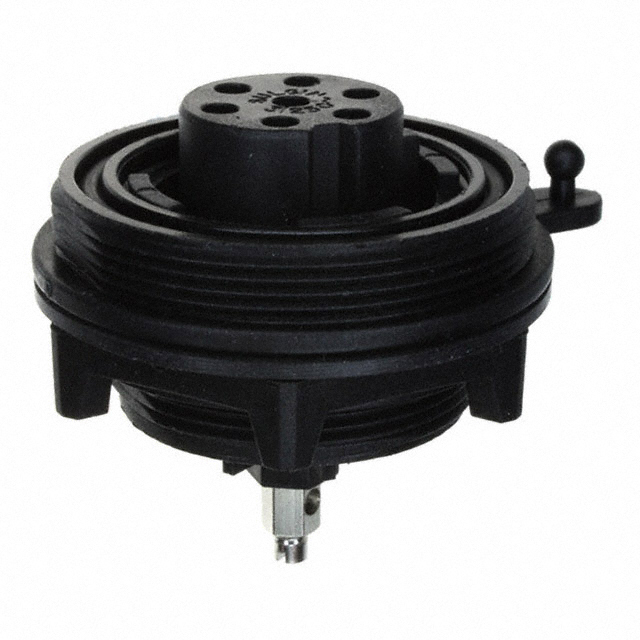

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 7 CONTACTS, SCREW SOCKET

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 7 CONTACTS, SCREW SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	PX0744/S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	3 A
Ingress Protection	IP68, IP69K
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC/DC

Part	Voltage Rating	Primary Material	Connector Type	Contact Finish - Mating	Color	Shielding	Termination	Shell Material	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Orientation	Ingress Protection	Insert Material
BULGIN LIMITED PX0744/S	277 VAC/DC	Plastic	Receptacle Female Sockets	Nickel	Black	Unshielded	Screw	Glass Filled Nylon Polyamide (PA)	3 A	UL94 HB	-20 C	70 °C	Brass	Keyed	IP68 IP69K	Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (Power) Position Circular Connector Receptacle, Female Sockets Screw
