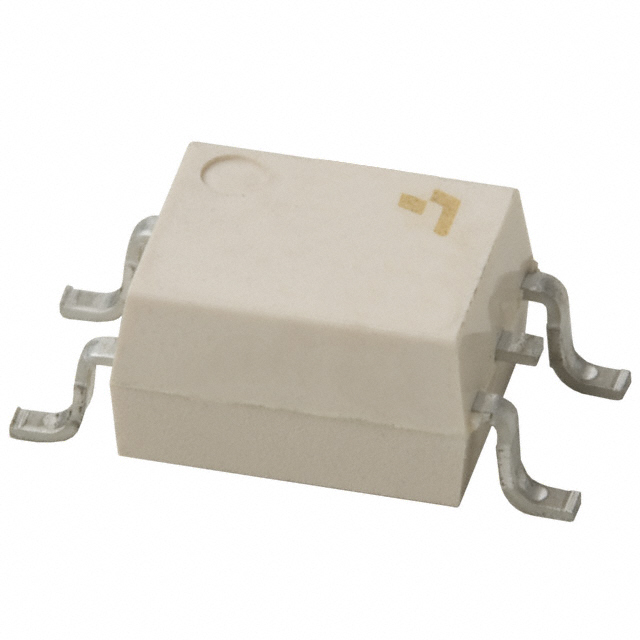

TLP4176A(TP,F
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NC 500MA 0-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP4176A(TP,F
ActiveToshiba Semiconductor and Storage
SSR RELAY SPST-NC 500MA 0-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP4176A(TP,F |
|---|---|
| Circuit | SPST-NC (1 Form B) |
| Load Current | 500 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 2.5 Ohms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.15 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.60 | |
| 10 | $ 1.71 | |||
| 100 | $ 1.25 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 1.01 | |||
| Digi-Reel® | 1 | $ 2.60 | ||
| 10 | $ 1.71 | |||
| 100 | $ 1.25 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 1.01 | |||
| Tape & Reel (TR) | 2500 | $ 0.96 | ||
| 5000 | $ 0.92 | |||
| 7500 | $ 0.90 | |||
Description
General part information
TLP417 Series
Solid State SPST-NC (1 Form B) 4-SMD, Gull Wing
