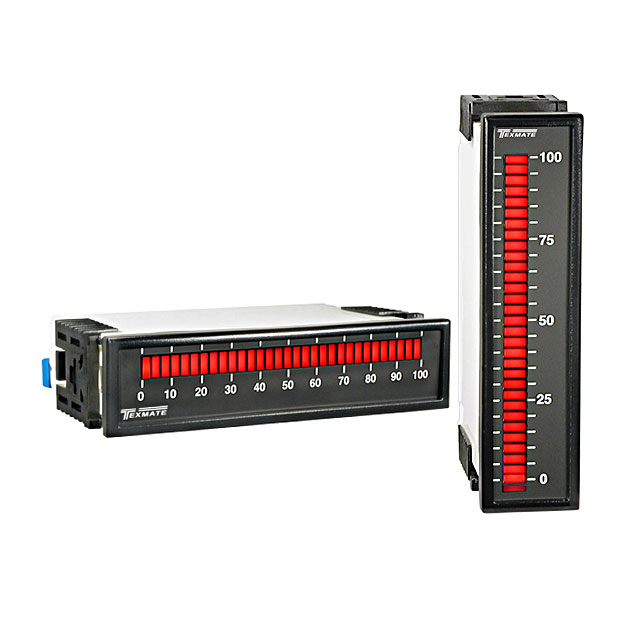

BX-B31-PROCESSV
ActiveTexmate
31 SEGMENT BARGRAPH. MEASURE 0-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BX-B31-PROCESSV |
|---|---|
| Display Characters - Height [z] | 0.15 in |
| Display Characters - Height [z] | 3.81 mm |
| Display Type | LED - Red Bar Graph |
| Measuring Range [Max] | 10 V, 20 mA |
| Measuring Range [Min] | 0 V, 4 mA |
| Measuring Type | Process |
| Panel Cutout Dimensions [x] | 91.95 mm |
| Panel Cutout Dimensions [y] | 21.84 mm |
| Termination Style | Screw Terminal |
| Type | Process Meter |
| Voltage - Supply [Max] | 265 VAC, 300 VDC |
| Voltage - Supply [Min] | 95 VDC, 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 349.00 | |
Description
General part information
BX-B31 Series
Process Meter LED - Red Bar Graph Display Panel Mount
