SZ5-M1-W0-00-V3/W2-AA
ObsoleteSeoul Semiconductor

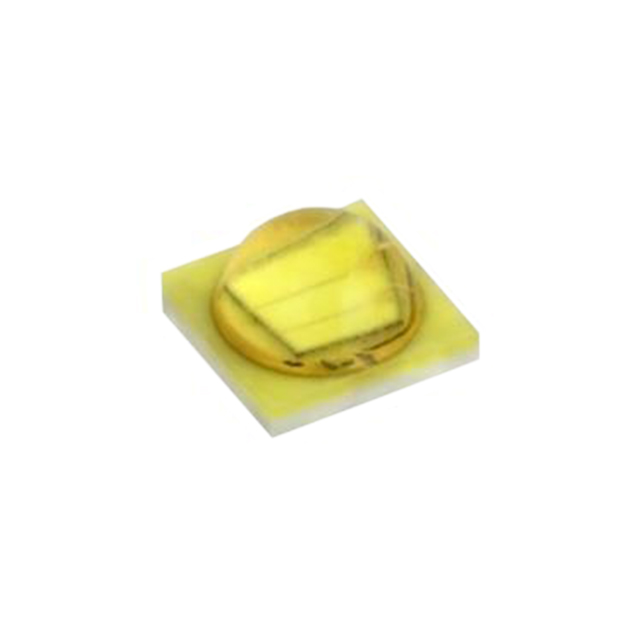

LED Z5-M1 COOL WHITE 5300K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
SZ5-M1-W0-00-V3/W2-AA
ObsoleteSeoul Semiconductor
LED Z5-M1 COOL WHITE 5300K 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SZ5-M1-W0-00-V3/W2-AA |
|---|---|
| CCT (K) | 5300 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 70 |
| Current - Max [Max] | 1.5 A |
| Current - Test | 350 mA |
| Flux @ 25°C, Current - Test | 155 lm |
| Lumens/Watt @ Current - Test | 150 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 118 ° |
| Voltage - Forward (Vf) (Typ) | 2.95 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SZ5-M1 Series
LED Lighting Z5-M1 White, Cool 5300K 2.95V 350mA 118° 2-SMD, No Lead Exposed Pad
Documents
Technical documentation and resources
No documents available
