1121A 0101000

Active

Belden Inc.

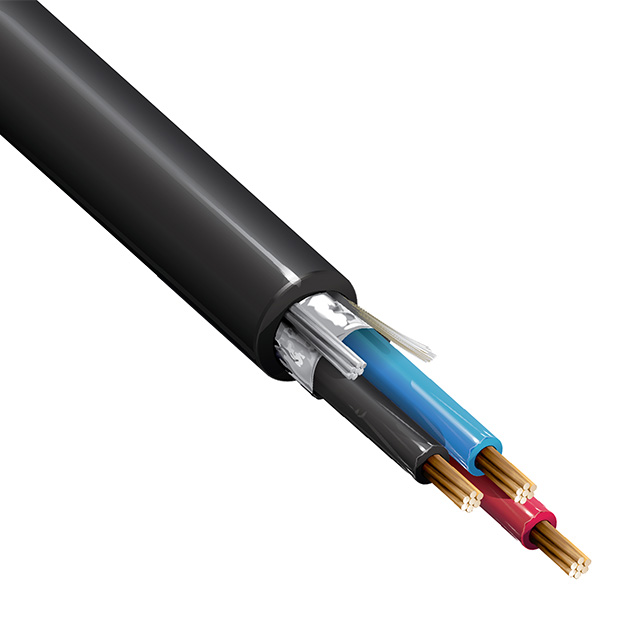

CABLE 3COND 18AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 18AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1121A 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	18 AWG

Part	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length [x]	Shield Type	Shield Material	Jacket (Insulation) Material	Jacket Color	Cable Type	Number of Conductors	Conductor Insulation	Wire Gauge	Shield Coverage	Conductor Material	Length
Belden Inc. 1121A 01010000	Drain Wire Rip Cord	26 AWG	7	1.194 mm	0.047 in	3048 m	10000 ft	Foil	Aluminum	Poly-Vinyl Chloride (PVC)	Black	Multi-Conductor	3	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	18 AWG	100 %	Copper Bare
Belden Inc. 1121A 0101000	Drain Wire Rip Cord	26 AWG	7	1.194 mm	0.047 in	304.8 m		Foil	Aluminum	Poly-Vinyl Chloride (PVC)	Black	Multi-Conductor	3	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	18 AWG	100 %	Copper Bare	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.61

General part information

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 18 AWG Foil 1000.0' (304.8m)
