ED3000/2

Active

On Shore Technology Inc.

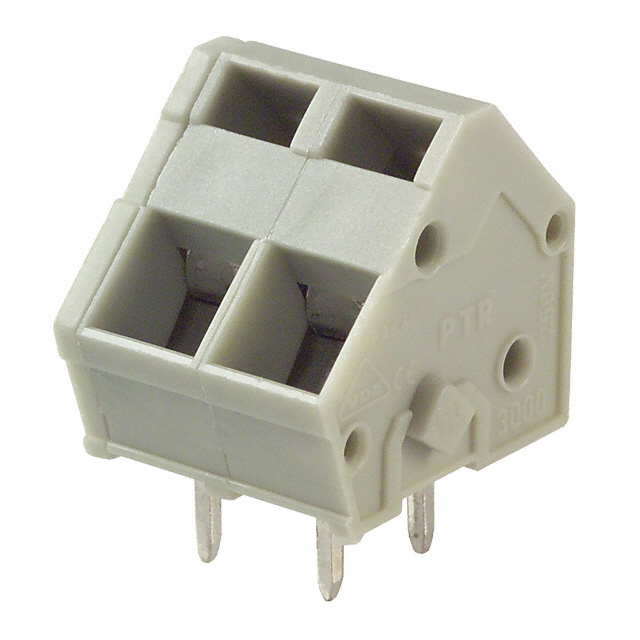

TERM BLOCK 2POS 45DEG 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ED3000/2

Active

On Shore Technology Inc.

TERM BLOCK 2POS 45DEG 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED3000/2

Clamp Material - Plating	Copper
Color	Gray, Slate
Current	16 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	2
Voltage	300 V
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring

ED3000 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Positions Per Level	Color	Number of Levels	Wire Termination	Mating Orientation	Mating Orientation	Pitch [x]	Pitch [x]	Current	Clamp Material - Plating	Features	Housing Material	Voltage
On Shore Technology Inc. ED3000/12	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	12	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/11	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	11	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/3	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	3	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/2	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	2	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/10	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	10	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/5	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	5	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/9	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	9	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V
On Shore Technology Inc. ED3000/7	-30 ░C	105 ░C	28 AWG	14 AWG	Through Hole	7	Gray Slate	1	Push-In Spring Screwless - Leg Spring	135 °	45 °	5 mm	0.197 in	16 A	Copper	Interlocking (Side)	Polyamide (PA) Nylon	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.35
		10	$ 0.95
		25	$ 0.89
		50	$ 0.80
		200	$ 0.80
		400	$ 0.68
		600	$ 0.64
		1000	$ 0.57
		5000	$ 0.46

Description

General part information

ED3000 Series

2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
