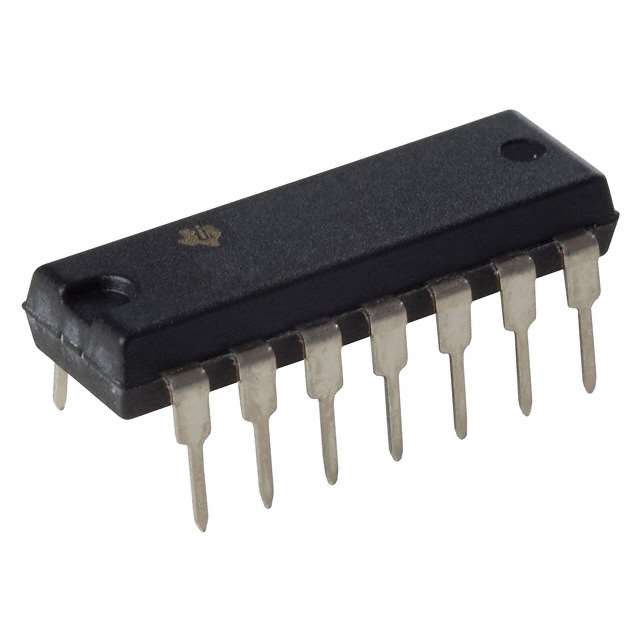

XTR101BG
ActiveSENSOR AND DETECTOR INTERFACE 40V 2-WIRE INTERFACE 14-PIN SBCDIP TUBE
Deep-Dive with AI
Search across all available documentation for this part.
XTR101BG
ActiveSENSOR AND DETECTOR INTERFACE 40V 2-WIRE INTERFACE 14-PIN SBCDIP TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XTR101BG |
|---|---|
| Current - Supply | 20 mA |
| Input Type | Differential |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-CDIP |
| Supplier Device Package | 14-CDIP |
| Type | Current Transmitter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 95.64 | |
| 10 | $ 90.71 | |||
| 25 | $ 88.24 | |||
| 100 | $ 82.07 | |||
| Texas Instruments | TUBE | 1 | $ 121.95 | |
| 100 | $ 106.52 | |||
| 250 | $ 82.13 | |||
| 1000 | $ 73.46 | |||
Description
General part information
XTR101 Series
The XTR101 is a microcircuit, 4-20mA, two-wire transmitter containing a high accuracy instrumentation amplifier (IA), a voltage-controlled output current source, and dual-matched precision current reference. This combination is ideally suited for remote signal conditioning of a wide variety of transducers such as thermocouples, RTDs, thermistors, and strain gauge bridges. State-of-the-art design and laser-trimming, wide temperature range operation, and small size make it very suitable for industrial process control applications. In addition, the optional external transistor allows even higher precision.
The two-wire transmitter allows signal and power to be supplied on a single wire pair by modulating the power-supply current with the input signal source. The transmitter is immune to voltage drops from long runs and noise from motors, relays, actuators, switches, transformers, and industrial equipment. It can be used by OEMs producing transmitter modules or by data acquisition system manufacturers.
The XTR101 is a microcircuit, 4-20mA, two-wire transmitter containing a high accuracy instrumentation amplifier (IA), a voltage-controlled output current source, and dual-matched precision current reference. This combination is ideally suited for remote signal conditioning of a wide variety of transducers such as thermocouples, RTDs, thermistors, and strain gauge bridges. State-of-the-art design and laser-trimming, wide temperature range operation, and small size make it very suitable for industrial process control applications. In addition, the optional external transistor allows even higher precision.
