2987914

Active

Phoenix Contact

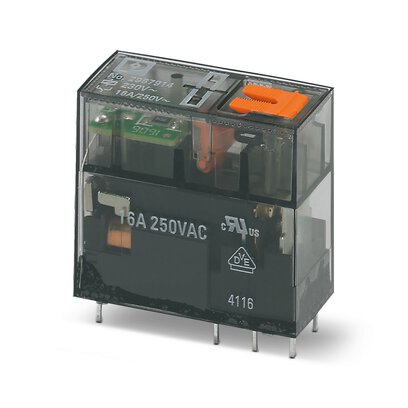

RELAY GEN PURPOSE SPDT 16A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2987914

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 230V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2987914

Approval Agency	cULus, EAC, UR
Coil Current	3.5 mA
Coil Resistance	65.7 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	8 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	PC Pin

29879 Series

Part	Contact Material	Contact Rating (Current)	Coil Voltage	Approval Agency	Relay Type	Coil Resistance	Coil Type	Termination Style	Coil Current	Mounting Type	Operate Time	Switching Voltage	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Features
Phoenix Contact 2987969	Silver Nickel (AgNi)	8 A	120 VAC	cULus EAC UR	General Purpose	8.1 kOhms	Non Latching	PC Pin	7 mA	Through Hole	12 ms	250 VAC 250 VDC	8 ms	-40 °C	70 °C	DPDT (2 Form C)
Phoenix Contact 2987943	Silver Nickel (AgNi)	8 A	24 VDC	cULus EAC UR	General Purpose	1.3 kOhms	Non Latching	PC Pin	18 mA	Through Hole	9 ms	250 VAC 250 VDC	6 ms	-40 °C	70 °C	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button
Phoenix Contact 2987930	Gold (Au) Silver Nickel (AgNi)	16 A	230 VAC	cULus EAC UR	General Purpose	65.71 kOhms	Non Latching	PC Pin	3.5 mA	Through Hole	12 ms	250 VAC 250 VDC	8 ms	-40 °C	70 °C	SPDT (1 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button
Phoenix Contact 2987985	Gold (Au) Silver Nickel (AgNi)	8 A	24 VDC	cULus EAC UR	General Purpose	1.33 kOhms	Non Latching	PC Pin	18 mA	Through Hole	9 ms	250 VAC 250 VDC	6 ms	-40 °C	70 °C	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button
Phoenix Contact 2987927	Gold (Au) Silver Nickel (AgNi)	16 A	24 VDC	cULus EAC UR	General Purpose	1.41 kOhms	Non Latching	PC Pin	17 mA	Through Hole	9 ms	250 VAC 250 VDC	6 ms	-40 °C	70 °C	SPDT (1 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button
Phoenix Contact 2987914	Silver Nickel (AgNi)	16 A	230 VAC	cULus EAC UR	General Purpose	65.7 kOhms	Non Latching	PC Pin	3.5 mA	Through Hole		250 VAC 250 VDC	8 ms	-40 °C	70 °C	SPDT (1 Form C)
Phoenix Contact 2987972	Silver Nickel (AgNi)	8 A	230 VAC	cULus EAC UR	General Purpose	65.7 kOhms	Non Latching	PC Pin	3.5 mA	Through Hole	12 ms	250 VAC 250 VDC	8 ms	-40 °C	70 °C	DPDT (2 Form C)
Phoenix Contact 2987998	Gold (Au) Silver Nickel (AgNi)	8 A	230 VAC	cULus EAC UR	General Purpose	65.71 kOhms	Non Latching	PC Pin	3.5 mA	Through Hole	12 ms	250 VAC 250 VDC	8 ms	-40 °C	70 °C	DPDT (2 Form C)	Diode Lighted Indicator Mechanical Indicator Test Button
Phoenix Contact 2987901	Silver Nickel (AgNi)	16 A	120 VAC	cULus EAC UR	General Purpose	8.1 kOhms	Non Latching	PC Pin	7 mA	Through Hole	12 ms	250 VAC 250 VDC	8 ms	-40 °C	70 °C	SPDT (1 Form C)	Lighted Indicator Mechanical Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.62
		10	$ 8.99
		50	$ 8.27
		100	$ 7.64
		250	$ 7.28
		500	$ 6.83

Description

General part information

29879 Series

General Purpose Relay SPDT (1 Form C) 230VAC Coil Through Hole
