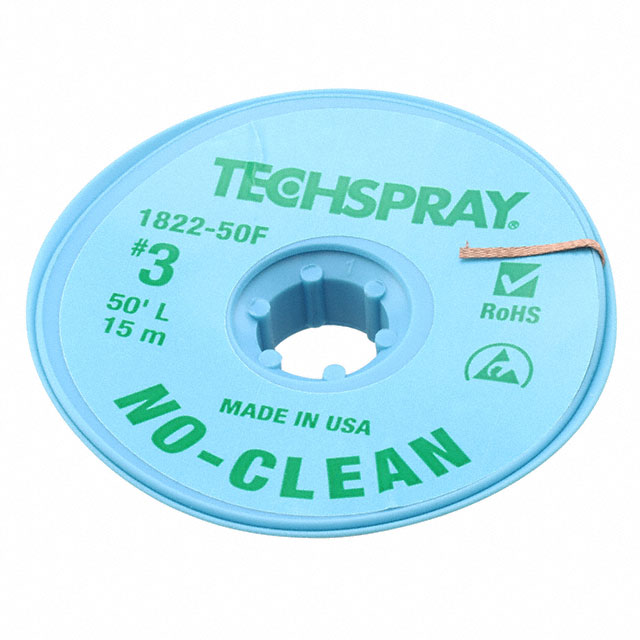

1822-50F - 1822-50F

1822-50F

Active
Techspray

DESOLDERING BRAID, 50 FT X 0.075", GREEN, COPPER

Deep-Dive with AI

Search across all available documentation for this part.

1822-50F - 1822-50F

1822-50F

Active
Techspray

DESOLDERING BRAID, 50 FT X 0.075", GREEN, COPPER

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification1822-50F
ColorGreen
ESD ProtectionStatic Dissipative (SD)
Length [x]50 ft
Length [x]15.24 m
Product TypeBraid/Wick
Shelf Life24 Months
Shelf Life StartDate of Manufacture
TypeNo Clean
Width0.075 in
Width1.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 41.75
NewarkEach 1$ 55.15
25$ 50.53
50$ 46.94
100$ 45.40
250$ 43.87

Description

General part information

1822 Series

1822-50F is a no-clean desoldering braid. Techspray no-clean desoldering braid (wick) does not leave behind ionic flux residues that can collect and form branches called "dendrites". Other fluxes, if not cleaned properly, can cause dendrites that grow over time and eventually cause short circuits between traces or leads. Latent failures lead to costly returns and lower the quality perception of your products. This desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed. The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick.
