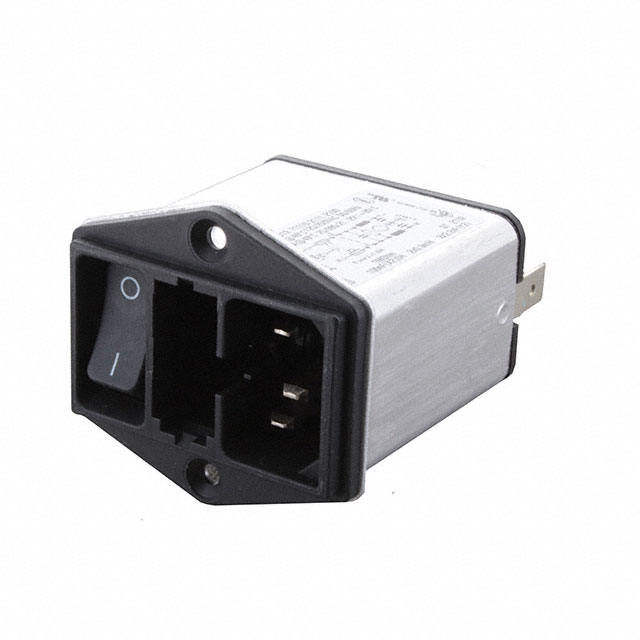

DD12.9121.121

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD12.9121.121

Accomodates a Fuse	True
Approval Agency	cURus, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Shielded, V-Lock Notch, Earth Line Choke
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	29.8 mm
Panel Cutout Dimensions [y]	49.3 mm
Panel Thickness	8 mm
Panel Thickness	0.315 in
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Termination	Termination	Termination	Switch Features	Mounting Type	Ingress Protection	Features	Approval Agency	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Current Rating - Filter	Connector Type	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness	Connector Style	Fuse Holder, Drawer	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DD12.9121.111	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Flange Panel Mount	IP40	Earth Line Choke Shielded V-Lock Notch	cURus ENEC	UL94 V-0	49.3 mm	29.8 mm	10 A	10 A	Receptacle Male Blades - Module	250 VAC	8 mm	0.315 in	IEC 320-C14	Drawer Sold Separate
SCHURTER Inc. DD12.9121.121	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Flange Panel Mount	IP40	Earth Line Choke Shielded V-Lock Notch	cURus ENEC	UL94 V-0	49.3 mm	29.8 mm	10 A		Receptacle Male Blades - Module	250 VAC	8 mm	0.315 in	IEC 320-C14	Drawer Sold Separate
SCHURTER Inc. DD12.9121.131	Filtered (EMI RFI) - Commercial	0.25 in	6.3 mm	Quick Connect	Switch On-Off	Panel Mount Snap-In	IP40	Earth Line Choke Shielded V-Lock Notch	cURus ENEC	UL94 V-0	49.3 mm	29.8 mm	10 A		Receptacle Male Blades - Module	250 VAC			IEC 320-C14	Drawer Sold Separate	3 mm	0.118 in	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
