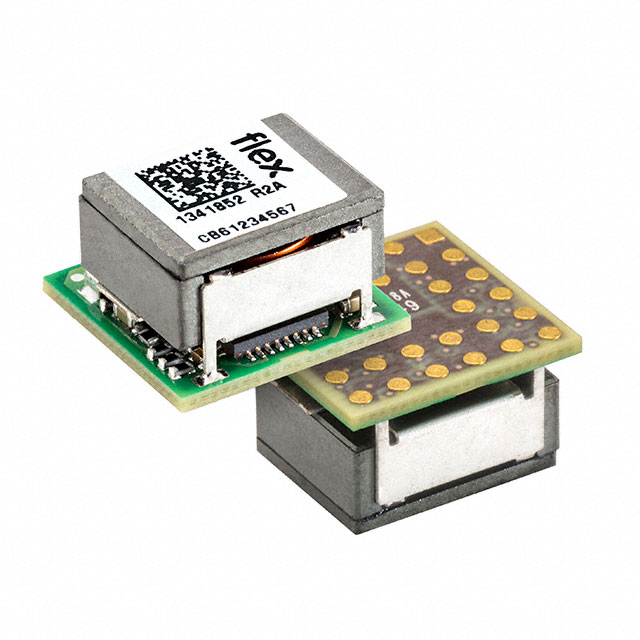

BMR4612001/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-5V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BMR4612001/001

Active

Flex Power Modules

DC DC CONVERTER 0.6-5V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BMR4612001/001

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	6 A
Efficiency	95.6 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Package / Case	32-BLGA Module
Power (Watts)	30 W
Size / Dimension [x]	0.48 in
Size / Dimension [x]	12.2 mm
Size / Dimension [y]	0.48 in
Size / Dimension [y]	12.2 mm
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.31 in
Standard Number	62368-1
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5 V
Voltage - Output 1 [Min]	0.6 V

BMR461 Series

Part	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Control Features	Power (Watts)	Applications	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number
Flex Power Modules BMR4614001/001	91.6 %	4.5 V	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	1.8 V	0.6 V	Active Low Enable	32 W	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module Digital	18 A	14 V	CB CSA IEC TUV UL	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	32-BLGA Module	-40 °C	120 °C	62368-1
Flex Power Modules BMR4613001/001	95.8 %	4.5 V	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	5 V	0.6 V	Active Low Enable	60 W	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module Digital	12 A	14 V	CB CSA IEC TUV UL	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	32-BLGA Module	-40 °C	120 °C	62368-1
Flex Power Modules BMR4612001/001	95.6 %	4.5 V	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	5 V	0.6 V	Active Low Enable	30 W	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module Digital	6 A	14 V	CB CSA IEC TUV UL	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	32-BLGA Module	-40 °C	120 °C	62368-1
Flex Power Modules BMR4614101/001	91.6 %	4.5 V	1	Adjustable Output PMBus™ Remote On/Off Remote Sense	1.8 V	0.6 V	Active Low Enable	32 W	ITE (Commercial)	Surface Mount	Non-Isolated PoL Module Digital	18 A	14 V	CB CSA IEC TUV UL	0.48 in	0.48 in	8 mm	12.2 mm	12.2 mm	0.31 in	32-BLGA Module	-40 °C	120 °C	62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.09
		5	$ 12.60
		10	$ 12.40
		25	$ 12.14
		50	$ 11.94
	Digi-Reel®	1	$ 13.09
		5	$ 12.60
		10	$ 12.40
		25	$ 12.14
		50	$ 11.94
	Tape & Reel (TR)	140	$ 9.90
		280	$ 9.74
		420	$ 9.65
		700	$ 9.53
		980	$ 9.46

Description

General part information

BMR461 Series

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 5V 6A 4.5V - 14V Input
