KW H3L531.TE-Q75RF-EBVF46FCBB46-DFGF

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KW H3L531.TE-Q75RF-EBVF46FCBB46-DFGF

Color	White
Current - Max [Max]	1.2 A
Current - Test	1 A
Flux @ 25°C, Current - Test	1080 lm
Flux @ 25°C, Current - Test [Max]	1320 lm
Flux @ 25°C, Current - Test [Min]	840 lm
Height - Seated (Max) [Max] [z]	0.49 mm
Height - Seated (Max) [Max] [z]	0.019 in
Lumens/Watt @ Current - Test	117 lm/W
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension [x]	4.2 mm
Size / Dimension [x]	0.165 in
Size / Dimension [y]	3.75 mm
Size / Dimension [y]	0.148 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	1.3 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	9.2 V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thermal Resistance of Package [custom]	Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Package / Case	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Current - Max [Max]	Lumens/Watt @ Current - Test	Mounting Type	Color	Voltage - Forward (Vf) (Typ)
ams-OSRAM USA INC. KW H3L531.TE-Q75RF-EBVF46FCBB46-DFGF	3.75 mm	0.148 in	4.2 mm	0.165 in	1.3 °C/W	1 A	1320 lm	840 lm	1080 lm	6-SMD No Lead	SMD	0.49 mm	0.019 in	120 °	1.2 A	117 lm/W	Surface Mount	White	9.2 V
ams-OSRAM USA INC. KW H3L531.TE-Z7Q6-EBVFFCBB46-DFYF	3.75 mm	0.148 in	4.2 mm	0.165 in	1.3 °C/W	1 A				6-SMD No Lead	SMD	0.49 mm	0.019 in	120 °	1.2 A		Surface Mount	White	9.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

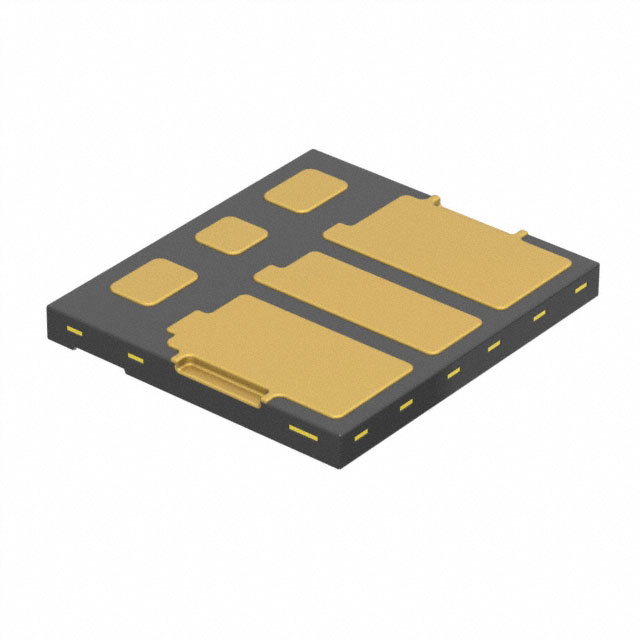

LED Lighting OSLON® Black Flat White 9.2V 1A 120° 6-SMD, No Lead
