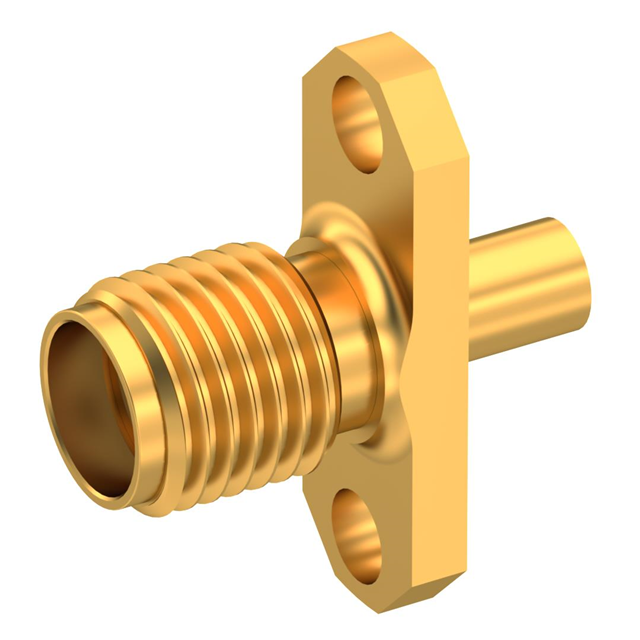

9441-1083-010

Active

Radiall USA, Inc.

SMA F STR NWF SD .085

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR NWF SD .085

Technical Specifications

Parameters and characteristics for this part

Specification	9441-1083-010

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

Part	Connector Type	Housing Color	Voltage Rating	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Termination	Mounting Feature	Body Material	Dielectric Material	Center Contact Plating	Impedance	Number of Ports	Mating Cycles	Shield Termination	Frequency - Max [Max]	Body Finish	Cable Group
Radiall USA, Inc. 9441-1083-009	Female Socket Jack	Gold	500 V	Beryllium Copper	-65 ░C	165 °C	SMA	Solder	Flange	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	1	500	Solder	18 GHz	Gold
Radiall USA, Inc. 9441-1083-010	Female Socket Jack	Gold	350 V	Beryllium Copper	-65 ░C	105 ░C	SMA	Solder	Flange	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	1	500	Solder	18 GHz	Gold	RG-405 (.085" Semi Rigid)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
