PT15NH06-203A2020-S

Active

Amphenol Piher Sensing Systems

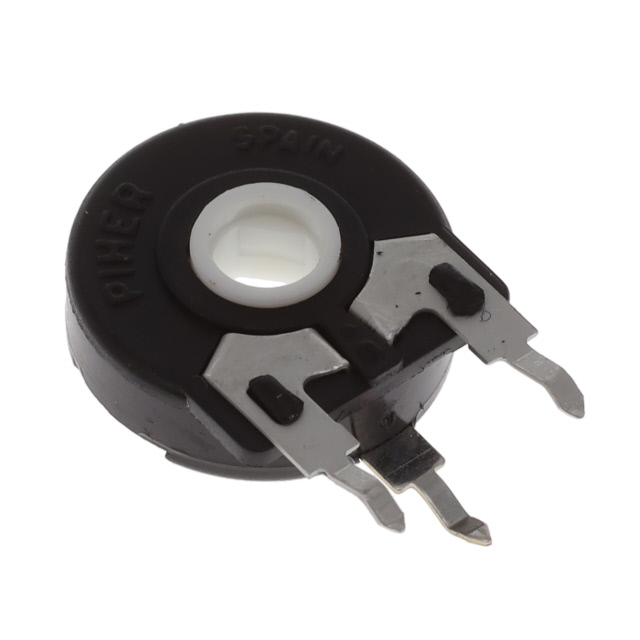

TRIMMER 20KOHM 0.25W PC PIN SIDE

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 20KOHM 0.25W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Resistive Material	Adjustment Type	Resistance	Number of Turns	Tolerance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Power (Watts)	Power (Watts)	Temperature Coefficient	Termination Style
Amphenol Piher Sensing Systems PT15NH06-105A2020-S	Carbon	Side Adjustment	1 MOhms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-104A2020-S	Carbon	Side Adjustment	100 kOhms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-103A2020-S	Carbon	Side Adjustment	10000 Ohms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-252A2020-S	Carbon	Side Adjustment	2.5 kOhms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-203A2020-S	Carbon	Side Adjustment	20 kOhms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-201A2020-S	Carbon	Side Adjustment	200 Ohms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-204A2020-S	Carbon	Side Adjustment	200000 Ohms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-101A2020-S	Carbon	Side Adjustment	100 Ohms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins
Amphenol Piher Sensing Systems PT15NH06-505A2020-S	Carbon	Side Adjustment	5 MOhms	1	20 %	Through Hole	15 mm	0.591 in	0.25 W	250 mW	300 ppm/°C	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 kOhms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
