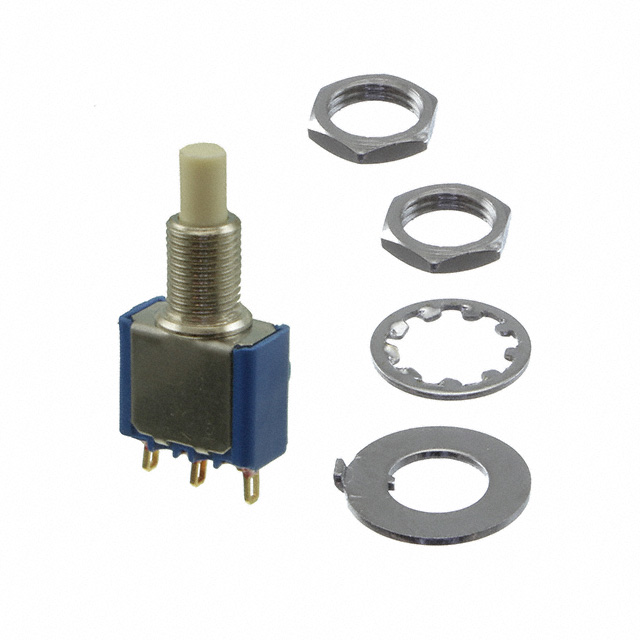

18535CD

Active

APEM

SWITCH PUSH SPDT 0.1A 30V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Specification	18535CD

Actuator Marking	No Marking
Actuator Type	Round, Plunger
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	60000 Cycles
Features	Tactile Feedback
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - DC	30 V

Part	Electrical Life	Circuit	Features	Actuator Type	Actuator Marking	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Type	Panel Cutout Dimensions [diameter]	Mounting Type	Voltage Rating - DC	Current Rating (Amps)
APEM 18535CD	60000 Cycles	SPDT	Tactile Feedback	Round Plunger	No Marking	Solder Lug	65 °C	-30 ░C	On-Mom	Standard	6.5 mm	Panel Mount Rear	30 V	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
