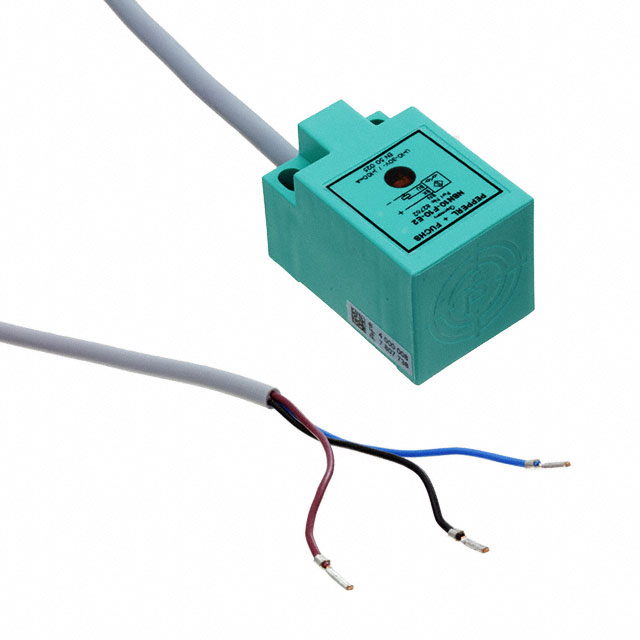

NBN10-F10-E2

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	NBN10-F10-E2

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Module
Sensing Distance	0.394 in
Sensing Distance	10 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type	Ingress Protection	Indicator [custom]	Package / Case	Shielding	Material - Body	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NBN10-F10-E2	30 VDC	10 VDC	PNP-NO 3-Wire	Cable	70 °C	-25 °C	Inductive	IP67	LED	Module	Unshielded	Polybutylene Terephthalate (PBT)	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 10MM PNP
