XPEBPA-L1-0000-00D01-SB01
ActiveNew Energy

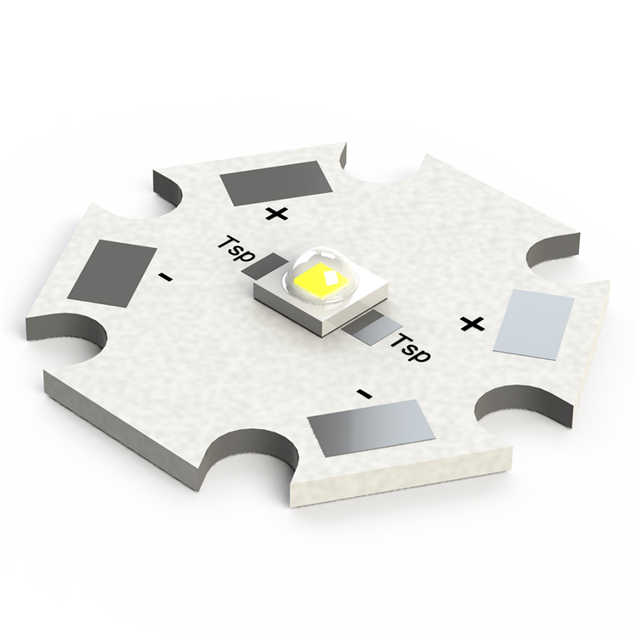

LED MOD XLAMP AMBER STARBOARD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XPEBPA-L1-0000-00D01-SB01 |
|---|---|
| Color | Amber |
| Configuration | Starboard |
| Current - Max [Max] | 1 A |
| Current - Test | 350 mA |
| Lens Type | Domed |
| Lumens/Watt @ Current - Test | 104 lm/W |
| Luminous Flux @ Current/Temperature | 111 lm |
| Size / Dimension [diameter] | 19.89 mm |
| Type | LED Module |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 3.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.19 | |
| 10 | $ 7.90 | |||
Description
General part information
XPEBPA Series
LED Lighting COBs Engines Modules LED Module XLamp® XP-E2 Amber Starboard
