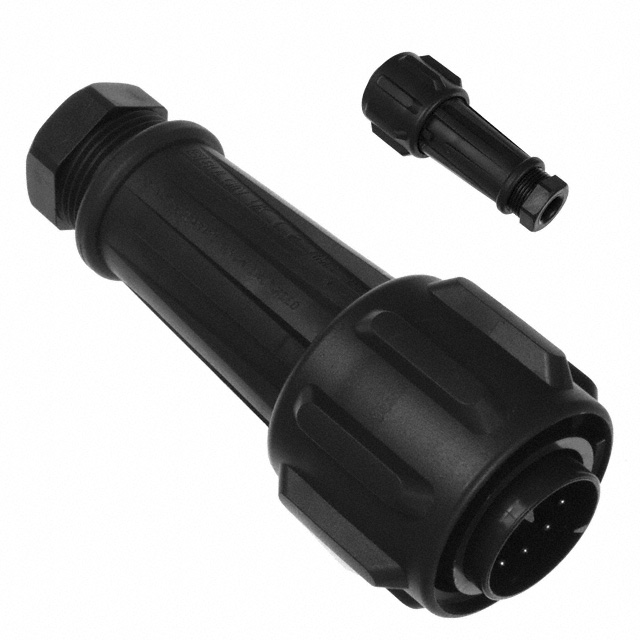

EXP-0911/10/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, EXPLORA SERIES, CABLE MOUNT PLUG, 10 CONTACTS, SCREW PIN, THREADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

EXP-0911/10/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, EXPLORA SERIES, CABLE MOUNT PLUG, 10 CONTACTS, SCREW PIN, THREADED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-0911/10/P

Applications	Industrial
Backshell Material, Plating	Polyester
Cable Opening [Max] [custom]	15 mm
Cable Opening [Max] [custom]	0.591 in
Cable Opening [Min] [custom]	13 mm
Cable Opening [Min] [custom]	0.512 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

EXP-0911 Series

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shielding	Termination	Number of Positions	Voltage Rating	Backshell Material, Plating	Mounting Type	Shell Material	Connector Type	Primary Material	Material Flammability Rating	Contact Material	Color	Contact Finish - Mating	Current Rating (Amps)	Features	Orientation	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-0911/02/P	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	2	600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Male Pins Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C
BULGIN LIMITED EXP-0911/03/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw		600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C	3	1	2
BULGIN LIMITED EXP-0911/04/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw		600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C	4		3	1
BULGIN LIMITED EXP-0911/10/P	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	10	250 VAC	Polyester	Free Hanging (In-Line)	Polyester	Male Pins Plug	Plastic	UL94 V-0	Brass	Black	Nickel	10 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C
BULGIN LIMITED EXP-0911/10/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	10	250 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	10 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 110.06
		10	$ 101.00
		25	$ 97.11
		50	$ 93.87
		100	$ 88.70
Newark	Each	1	$ 95.35
		10	$ 88.83
		25	$ 85.20
		50	$ 79.04
		100	$ 76.14
		250	$ 75.05
		500	$ 72.51

Description

General part information

EXP-0911 Series

10 (Power) Position Circular Connector Plug, Male Pins Screw
