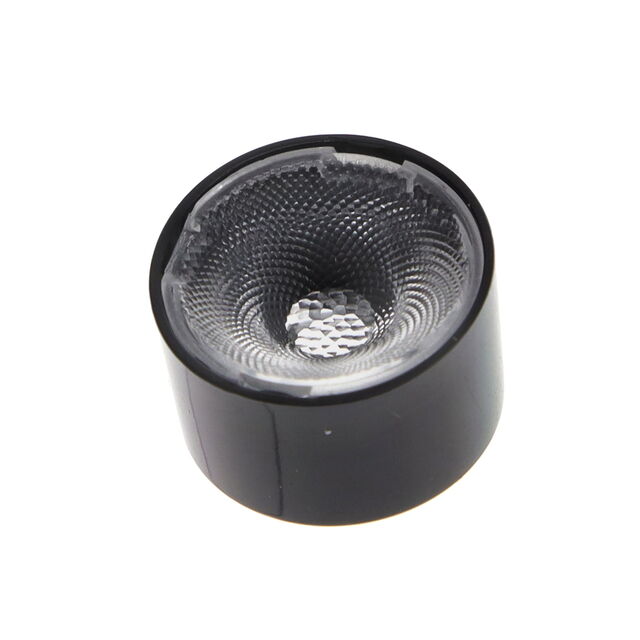

CA18105_TINA-Y-W

Active

LEDiL

ASSEMBLY 1 POS MM (D)/ 4 [TAPE SHEET] ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

LEDiL

ASSEMBLY 1 POS MM (D)/ 4 [TAPE SHEET] ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CA18105_TINA-Y-W

Color	Clear
For Use With/Related Manufacturer	Nichia, Samsung, Osram, Cree, Lumileds
Lens Size [diameter]	16.1 mm
Material	Acrylic
Mounting Type	Adhesive Tape
Number of LEDs	1
Optical Pattern	Medium
Type	Lens With Holder
Viewing Angle [Max]	48 °
Viewing Angle [Min]	32 °

Part	Color	Number of LEDs	Viewing Angle [Min]	Viewing Angle [Max]	Material	Mounting Type	Type	For Use With/Related Manufacturer	Lens Size [diameter]	Optical Pattern
LEDiL CA18105_TINA-Y-W	Clear	1	32 °	48 °	Acrylic	Adhesive Tape	Lens With Holder	Cree Lumileds Nichia Osram Samsung	16.1 mm	Medium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens With Holder Clear 32° ~ 48° Medium Adhesive Tape
