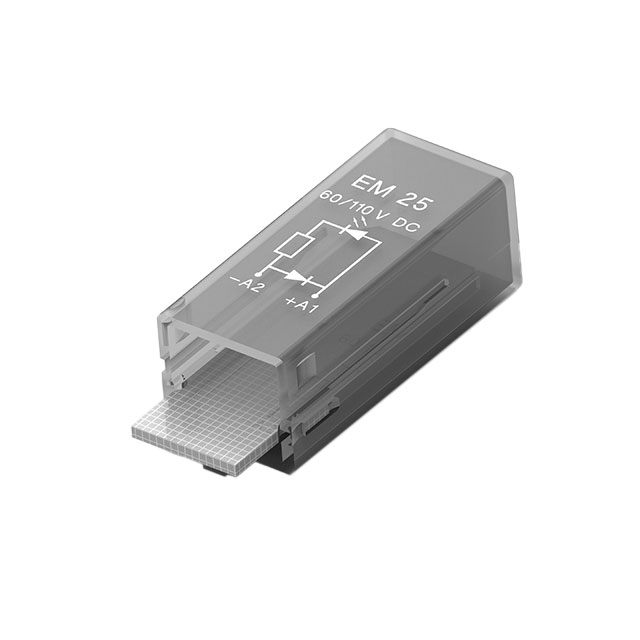

7-1415539-7

Active

TE Connectivity Potter & Brumfield Relays

PTMG0060

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

PTMG0060

Technical Specifications

Parameters and characteristics for this part

Specification	7-1415539-7

Accessory Type	Module, LED, Protection

Part	Accessory Type	Coil Type	Approval Agency	Mounting Type	Switching Voltage [Max]	Contact Material	Seal Rating	Contact Rating (Current)	Contact Form	Release Time	Operate Time	Termination Style	Coil Current	Must Operate Voltage	Relay Type	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Must Release Voltage	Coil Insulation	Coil Voltage
TE Connectivity Potter & Brumfield Relays 7-1415539-7	LED Module Protection
TE Connectivity Potter & Brumfield Relays 2-1415539-0		Non Latching	cURus VDE	Through Hole	400 VAC	Silver Nickel (AgNi)	Sealed - Fully	5 A	SPDT (1 Form C)	8 ms	8 ms	PC Pin	66.7 mA	2.25 VDC	General Purpose	2000 VA	85 °C	-40 °C	45 Ohms
TE Connectivity Potter & Brumfield Relays 1-1415539-4	LED Module Protection
TE Connectivity Potter & Brumfield Relays 4-1415539-8		Non Latching	CQC CSA cURus VDE	Through Hole	400 VAC	Silver Tin Oxide (AgSnO)	Sealed - Flux Protection	16 A	SPDT (1 Form C)	6 ms	9 ms	PC Pin	33.3 mA	8.4 VDC	General Purpose	6400 VA	85 °C	-40 °C	360 Ohms	1.2 VDC	Class F	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	500	$ 2.04

General part information

Module, LED and/or Protection PT Series

Technical documentation and resources

No documents available
