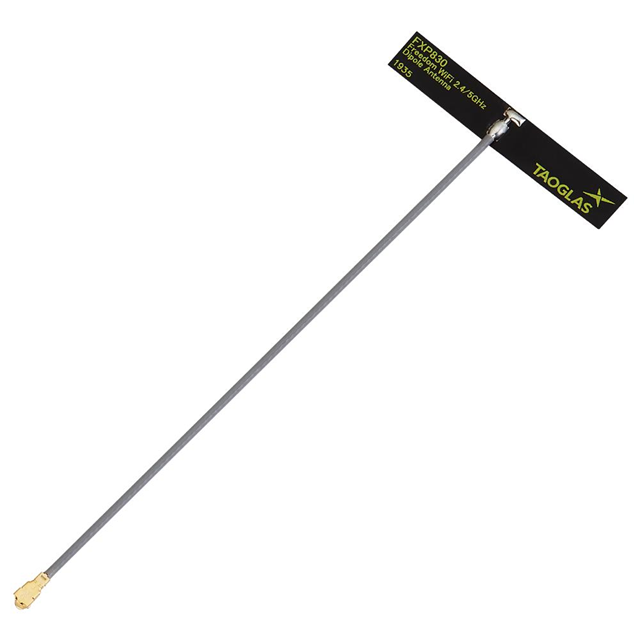

FXP830.07.0100C
ActiveTAOGLAS
RF ANTENNA, 5.8GHZ, PCB, 4.66DBI, 50 OHM, LINEAR, 2W, ADHESIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
FXP830.07.0100C
ActiveTAOGLAS
RF ANTENNA, 5.8GHZ, PCB, 4.66DBI, 50 OHM, LINEAR, 2W, ADHESIVE
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | FXP830.07.0100C |
|---|---|
| Antenna Type | Flat Patch |
| Applications | WLAN |
| Frequency Group | 4 GHz |
| Frequency Group [Max] | 3 GHz |
| Frequency Group [Min] | 2 GHz |
| Frequency Range [Max] | 2.5 GHz, 5.8 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 2.6 dBi, 5 dBi |
| Height (Max) | 0.1 mm |
| Height (Max) [Max] | 0.004 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 2 W |
| RF Family/Standard | WiFi |
| Termination | I-PEX MHF1, U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
FXP830 Series
RF ANTENNA WLAN Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Documents
Technical documentation and resources
